SQUARE D

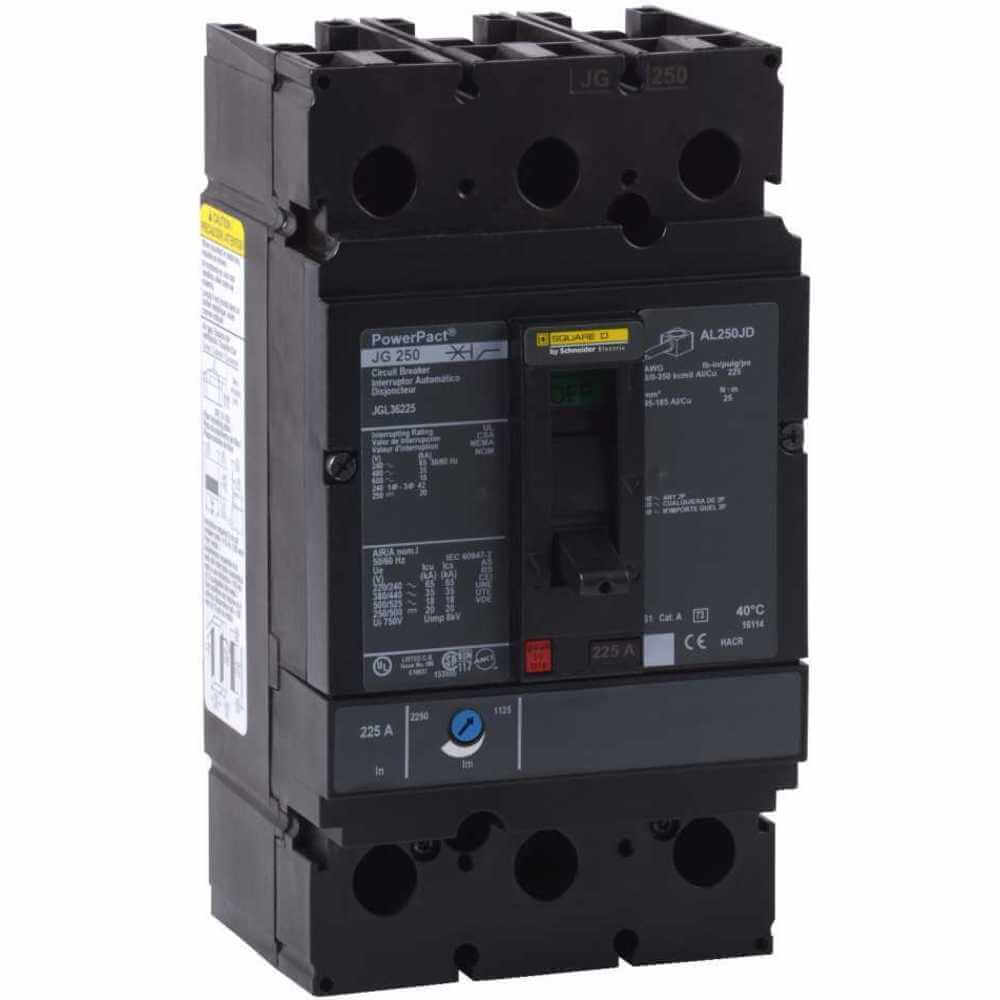

SQUARE D JGL36225 Circuit Breaker, 225 A, 3p, 600 VAC, Lug | AF6PUC 1MBB4

SQUARE D JGL36225 Circuit Breaker, 225 A, 3p, 600 VAC, Lug

In Stock
Item: AF6PUC Model: JGL36225Cross Ref: 1MBB4
Check Availability
See variants (9)

Get it by May 27, Monday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€2,630.52 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemCircuit Breaker
AC Voltage Rating600 VAC
Amps225
Circuit Breaker TypeStandard
DC Voltage Rating250 VDC
Depth5"
Frame Size250A/JG
Height7.5"
High Amp Trip Setting2250A
Low Amp Trip Setting1125A
Max. AIR RatingNot Rated
Max. Wire Size350 kcmil
Min. Wire Size3/0 AWG
MountingFree Standing
Number of Poles3
Phase3
Phase ConnectionABC
Terminal ConnectionLine/Load Lug
Trip TypeThermal Magnetic
Width4.1"

Shipping Info:

Ship weight (kg) 2.21
Ship height (cm)18.8
Ship length (cm)22.35
Ship width (cm)14.73
HS code8536200020

Product Details:

  • Square D JGL36225 is a PowerPact Series molded case circuit breaker featuring line- and load-side terminals for easy feed-thru connection, and a thermal magnetic trip with an instantaneous trip range of 1125 to 2250 A.
  • This 3-pole Square D circuit breaker operates at 600 VAC and 225 A, and includes a terminal nut that can accommodate a 3 AWG copper / aluminium wire.

Product Variants

ProductModelAmpsMax. Wire SizeMin. Wire SizePrice
SQUARE D JGL36150 Circuit Breaker 150a 3p 600vac Lug | AF6PTZ 1MBB1 JGL361501504/0 AWG4 AWG€2,630.52
SQUARE D JGL36175 Circuit Breaker 175a 3p 600vac Lug | AF6PUA 1MBB2 JGL361751754/0 AWG4 AWG€2,630.52
SQUARE D JGL36200 Circuit Breaker 200a 3p 600vac Lug | AF6PUB 1MBB3 JGL36200200350 kcmil3/0 AWG€2,630.52
SQUARE D JGL36250 Circuit Breaker 250a 3p 600vac Lug | AF6PUD 1MBB5 JGL36250250350 kcmil3/0 AWG€3,021.68
SQUARE D JGL36175AA Molded Case Circuit Breaker, 175A, 600VAC, Feed-Thru | CE6JQB JGL36175AA175--€2,802.58
SQUARE D JGL36175SO Molded Case Circuit Breaker, 175A, 600VAC, Unit Mount | CE6JQC JGL36175SO175--€2,944.05
SQUARE D JGL36250CU33X Molded Case Circuit Breaker, 250A, 600VAC, 35kAIC at 480V | CE6JQD JGL36250CU33X250--€5,015.56
