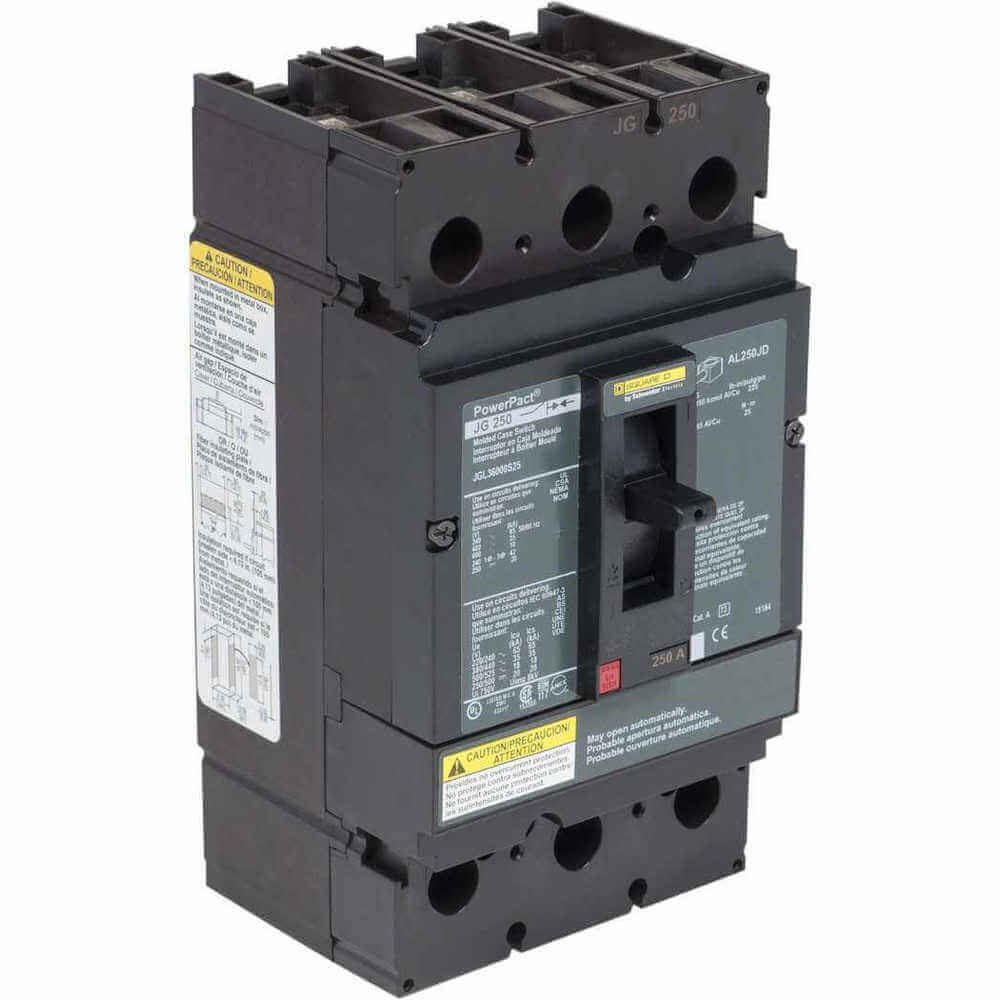

| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 250A |
| Circuit Breaker Type | Shunt Trip |
| Dc Voltage | 250V DC |
| Depth | 5" |
| Height | 7 1/2" |
| High Amp Trip Setting | 3125A |
| Low Amp Trip Setting | 3125A |
| Max. Air Rating | Not Rated |
| Max. Wire Size | 350 kcmil |
| Min. Wire Size | 0.41 AWG |
| Mounting | Free Standing |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 4.1" |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Dc Voltage Rating | 250V AC |
| For Use With | I Line Panelboards |
| Frame Size | 250A/JG |
| Instantaneous Trip | Fixed |
| Standards | CCC, CE, CSA, IEC, UL LISTED |
| Terminal Connection | Line/Load Lug |
| Ship weight (kg) | 2.19 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 14.73 |
| HS code | 8536509065 |
| Country of Origin | MX |
