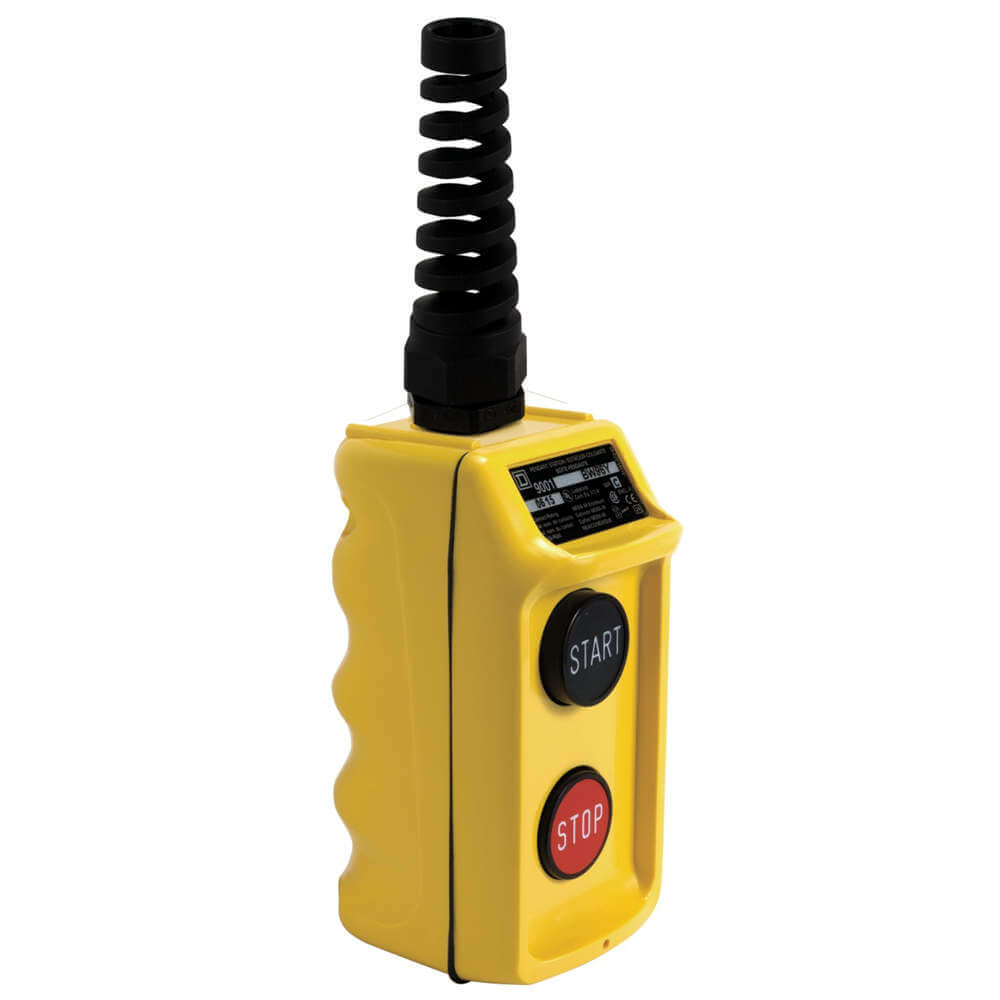

SQUARE D 9001BW96Y Pendant Push Button Station 2no Yellow
Get it by Monday, Jun 16
€300.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Pendant Push Button Station |
| Action Type | Maintained |
| Contact Form | 2NO |
| Contact Rating | 5A @ 600V AC/DC |
| Depth | 2.94" |
| Height | 8.82" |
| Housing Color | Yellow |
| Hub Size | 1/2" |
| Nema Contact Rating Designation | B600/P600 |
| Nema Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Operators | 2 |
| Type Of Operator | Push Button |
| Width | 2.19" |
| Ac Contact Rating | 5A @ 600V |
| Action | Maintained/Maintained |
| Dc Contact Rating | 5 A @ 600 V |
| Enclosure Color | Yellow |
| Hub Style | Dead End |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Legend | Start/Stop |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Speeds | 1 |
| Operator Configuration | Push Button |
| Operator Configuration Type | (1) Push Button |
| Overall Depth | 2.94" |
| Overall Height | 8.82" |
| Overall Width | 2.19" |
| Product Type | Pendant Control Station |
| Standards | CE, CSA, UL |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 22.4 |
| Ship length (cm) | 7.47 |
| Ship width (cm) | 5.56 |
| HS code | 8536509031 |
| Country of Origin | MX |
| Product | Model | Action | Contact Form | Contact Rating | Depth | Height | Housing Color | Housing Material | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XACA201 | Momentary | 2NO | 10A @ 600 VAC/DC | 3.27" | 4.33" | Yellow | Polypropylene | 4, 4X, 5 | €144.69 | |
 |
9001BW92B | Momentary | 2NO | 5A @ 600 VAC/DC | 2.94" | 4.69" | Black | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €199.62 | |
 |
9001BW92R | Momentary | 2NO | 5A @ 600 VAC/DC | 2.94" | 4.69" | Red | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €174.27 | |
 |
9001BW92Y | Momentary | 2NO | 5A @ 600 VAC/DC | 2.94" | 4.69" | Yellow | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €179.92 | |
 |
9001BW95Y | Momentary | 1NO/1NC | 5A @ 600 VAC/DC | 2.94" | 4.69" | Yellow | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €195.57 | |
 |
9001BW93Y | Momentary | 2NO | 5A @ 600 VAC/DC | 2.94" | 4.69" | Yellow | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €174.58 | |
|
9001BW94Y | Maintained | 1NO/1NC | 5A @ 600 VAC/DC | 2.94" | 4.69" | Yellow | Polycarbonate/PET Polyester Blend | 1, 3, 3R, 4, 4X | €261.34 |
