| Item | Definite Purpose Contactor |
| Action Type | Non Reversing |
| Contactor Type | Definite Purpose |
| Depth | 2.22" |
| Electrical Connection | Quick Connect Terminals Box Lugs |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Height | 3.29" |
| Housing Color | Gray |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 5 hp |
| Hp @ 3 Phase - 208v | 2.16 hp |
| Hp @ 3 Phase - 230v | 164 hp |
| Hp @ 3 Phase - 575v | 2.16 hp |
| Hp Rating | 2 hp @ 115V AC, 5 hp @ 230V AC |
| Inductive Full Load Amps | 40A |
| Mounting Orientation | Multiposition |
| Number Of Poles | 2 |
| Phase | 1 |
| Resistive Full Load Amps | 50A |
| Shaft Dia. | 12 mm |
| Warranty | 18 Months |
| Width | 2 4/25" |
| Coil Voltage | 220/208-240V AC |
| Contactor Frame Size | Compact |
| Full Load Current - Inductive | 40A |
| Full Load Current - Resistive | 50A |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Locked Rotor Load | 160A @ 575V AC, 200A @ 460V AC, 240A @ 277V AC |
| Main Pole Contact Form | 2NO |
| Maximum Voltage Rating | 600V AC |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Distance - Height | 1.63" |
| Mounting Hole Distance - Width | 1.63" |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 208-240V AC |
| Overall Depth | 2.45" |
| Overall Height | 3 8/25" |
| Overall Width | 2" |
| Reversing Capability | Non-Reversing |
| Series | 8910 Series Type DP |
| Standards | CSA, ROHS, UL LISTED |
| Wire Termination Type | Box Lug, Quick Disconnect |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 7.11 |
| HS code | 8536490065 |
| Country of Origin | CN |

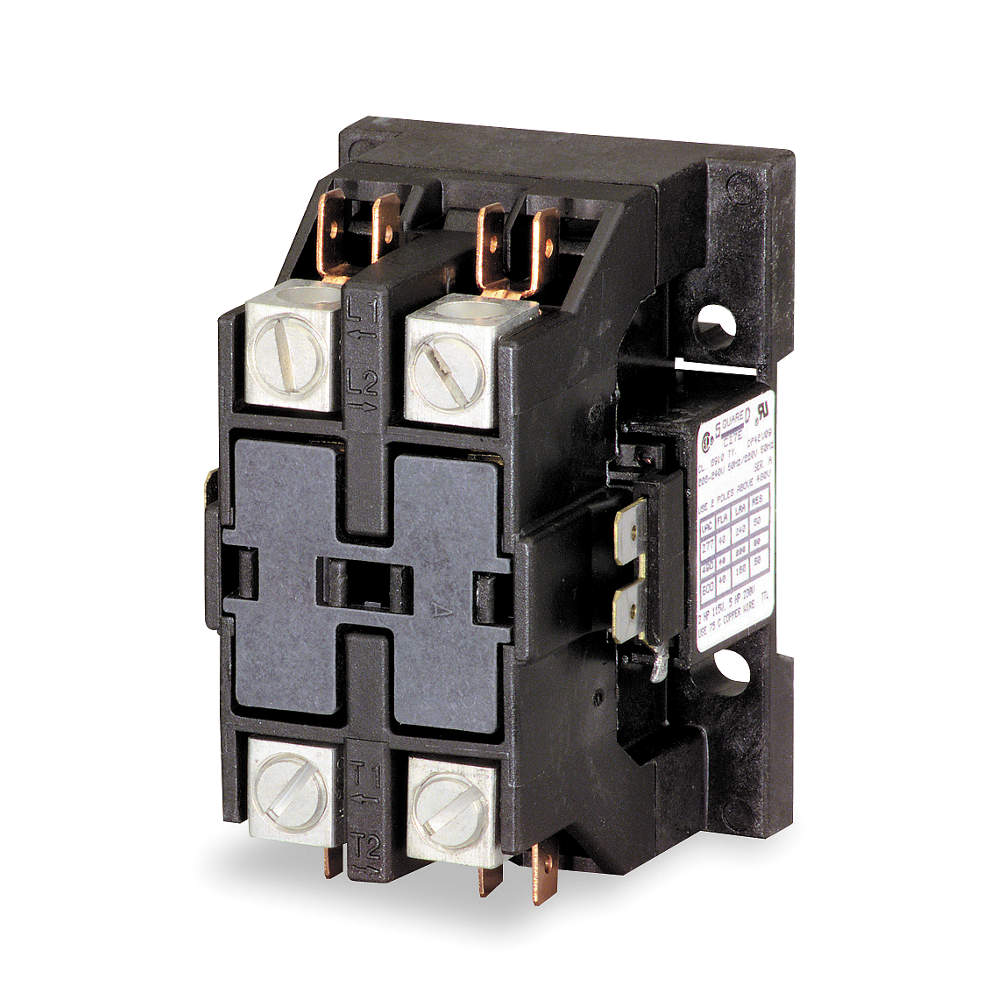

Square D 8910DP42V09 compact contactor is ideal for controlling electrical circuits in industrial and commercial applications. This CSA-approved contactor is used in machinery, HVAC systems, lighting and motor control panels, enabling remote switching of electrical loads. It is equipped with two poles, allowing for flexible and efficient control of electrical circuits according to your needs. This UL-listed contactor features quick-connect terminals for easy installation & integration into existing systems more convenient.
A. Major factors include voltage compatibility, load type and capacity, motor size, pole configuration, space constraints, frequency compatibility and installation ease.
A. The contactor operates at 208 / 240VAC, making it compatible with typical electrical systems.
A. The contactor is designed to handle up to 40 amps for inductive loads and up to 50 amps for resistive loads, ensuring reliable operation in various scenarios.
A. It can handle 2 HP at 120V 1-phase and 5 HP at 240V 1-phase.
