Get it by Friday, Jun 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

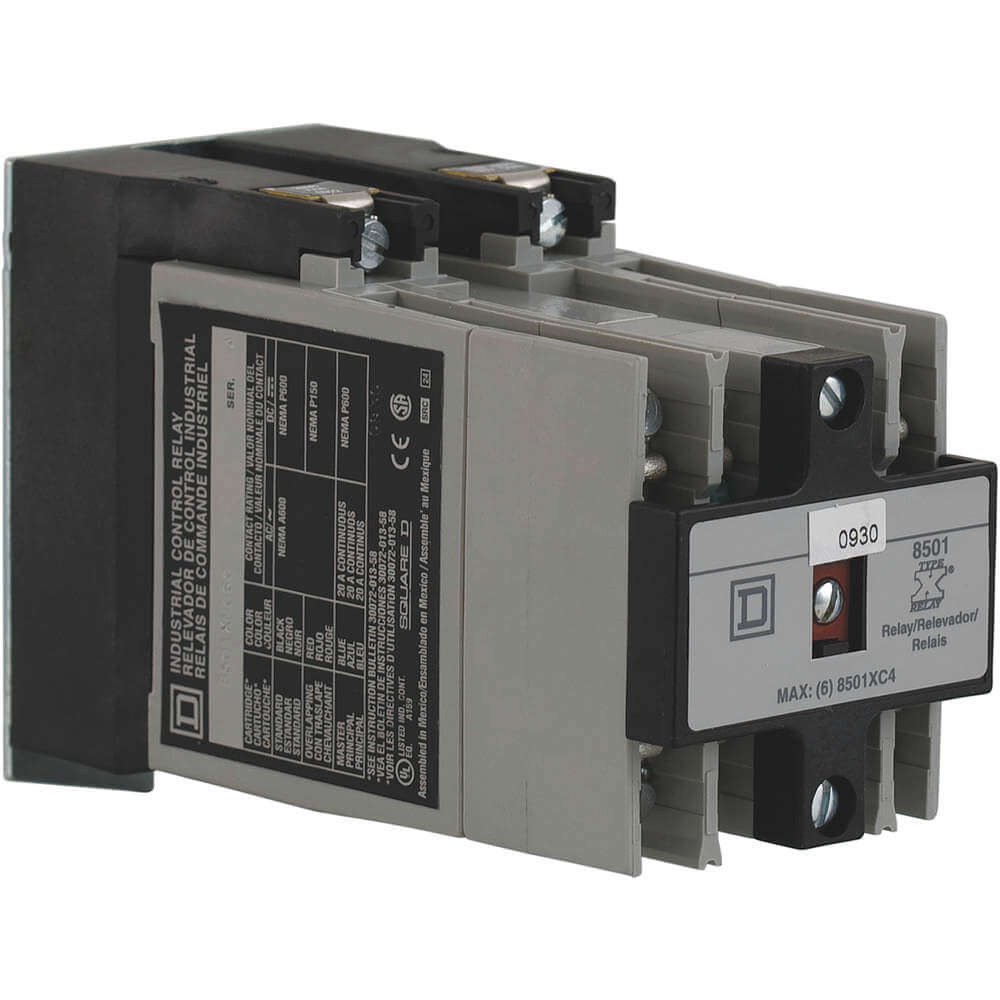

| Item | Master NEMA Control Relay |
| Accessory Group | F |
| Coil Voltage | 120V AC , 120V DC |
| Contact Form | 6NO |
| Contact Material | Silver Cadmium Oxide |
| Mounting | Panel |
| Resistive Contact Amp Rating | 20A |
| Body Depth | 5.16" |
| Body Height | 3.5" |
| Body Width | 2.23" |
| Contact Rating (ac) | 10A @ 600V |
| Current Rating | 20A |
| Electrical Connection Type | Screw |
| Frequency | 50/60 Hz |
| Input Voltage | 110/120V AC |
| Lead Size | 18 AWG |
| Maximum Operating Temperature | 160°F |
| Minimum Operating Temperature | -40°F |
| Number Of Terminals | 14 |
| Power Consumption | 23 VA |
| Relay Frame Size | Standard |
| Relay Mounting Style | Surface |
| Relay Style | NEMA |
| Response Time | 15 ms (Pick-Up Time), 16 ms (Drop-Out Time) |
| Series | 8501 Type X Latching Control Relays |
| Standards | CSA CERTIFIED, ROHS COMPLIANT, UL LISTED |
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 6.45 |
| Ship length (cm) | 16.38 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
| Product | Model | Contact Form | Hz | Price | |
|---|---|---|---|---|---|
 |
8501XMO40V02 | 4NO | 50/60 | €449.36 |
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.
