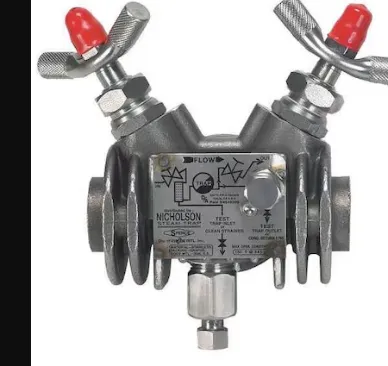

| Item | Steam Trap |
| Application | Steam Lines, Process Equipment, Steam Tracing, Unit Heaters, Coils And Rotating Drums |
| Body Material Grade | Stainless Steel |
| End To End Length | 2.812" |
| Fnpt Size | 1/2" |
| Max. Temp. | 800°F |
| Npt Inlet | 1/2" |
| Npt Outlet | 1/2" |
| Pipe Configuration | Straight |
| Type | Inverted Bucket |
| Allowable Temperature - Maximum | 800°F |
| Body Material | Stainless Steel |
| Condensate Capacity | 1800 lbs./hr. |
| Configuration | Straight-Thru |
| Distance Between Inlet And Outlet Port | 2 13/16" |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/2" |
| Inlet Port Connection Type | NPT |
| Maximum Capacity At Maximum Pressure Load | 1800 lbs./hr. @ 75 psi |
| Operating Pressure - Maximum | 75 psi |
| Outlet Port Connection Gender | Female |
| Outlet Port Connection Size | 1/2" |
| Outlet Port Connection Type | NPT |
| Port Connections | Inlet, Outlet |
| Self-draining | Self Draining |
| Steam Trap Type | Thermostatic |
| Ship weight (kg) | 0.7 |
