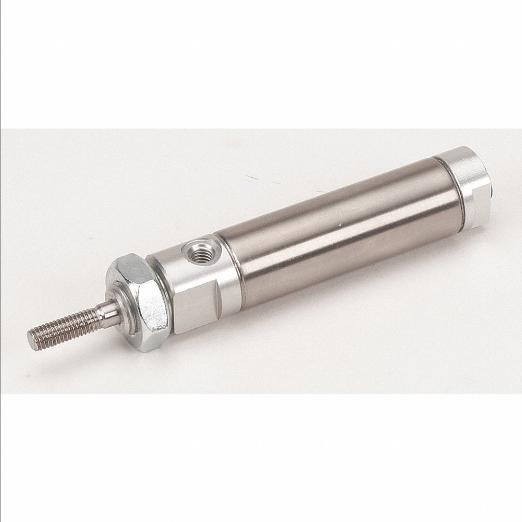

| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Body Material | Stainless Steel |
| Body Material Finish | Anodized |
| Cylinder Action | Double Acting |
| End Cap Material | Aluminum |
| Features | Switched |
| Finish | Hard Coat Anodized |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Magnetic Piston |
| Piston Material | Aluminum |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| System Of Measurement | Inch |
| Tie Rod Material | Not Applicable |
| Tube Material | Stainless Steel |
| Type | Round Body |
| Air Inlet | #10 32 UNF |
| Body Diameter | 5/8" |
| Body Material Grade | Grade 316 |
| Bore Diameter | 9/16" |
| Cushion Type | None |
| Cylinder Type | Round Body |
| End Cap Length | 3/16" |
| End Cap Material Finish | Anodized |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Pressure | 8 psi |
| Minimum Operating Temperature | 40°F |
| Mounting Style | Nose |
| Nose Mount Thread Size | 7/16"-20 |
| Number Of Rods | 1 |
| Overall Height | 1/2" |
| Overall Width | 1/2" |
| Piston Material Finish | Chromate Coated |
| Piston Rod Material | Stainless Steel |
| Repairable Cylinder | Non-Repairable |
| Rod Diameter | 3/16" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 1/2" |
| Rod Thread Size | #10-32 |
| Series | NCM Series |
| Stroke Length | 4" |
| Ship weight (kg) | 0.09 |
| Product | Model | End Cap Material | Max. Pressure | Nose Mount Thread | Overall Length | Port Size | Rod Dia. | Rod Thread Length | Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5MME9 | Aluminum | 250 psi | 7/16"-20 | 3.78" | #10-32 UNF | 3/16" | 1/2" | 1" | - | RFQ
|
 |
5MMF4 | Aluminum | 250 psi | 7/16"-20 | 7.78" | #10-32 UNF | 3/16" | 1/2" | 5" | €60.32 | |
 |
0.56DSRD02.00 | Delrin | 100 psi | 7/16"-20 | 4.78" | #10-32 | 0.188" | 1/2" | 2" | - | RFQ
|
|
5TRA2 | Delrin | 100 psi | 7/16"-20 | 5.78" | #10-32 | 0.188" | 1/2" | 3" | €63.62 | |
|
5TRG9 | Delrin | 100 psi | 1-1/4"-12 | 11.85" | 1/4" | 0.188" | 0.88" | 1/2" | - | RFQ
|
|
0.56DSRDM01.00 | Delrin | 100 psi | 7/16"-20 | 3.75" | #10-32 | 0.188" | 1/2" | 1" | - | RFQ
|
|
5TRH3 | Delrin | 100 psi | 7/16"-20 | 5.25" | #10-32 | 0.188" | 1/2" | 3" | - | RFQ
|
