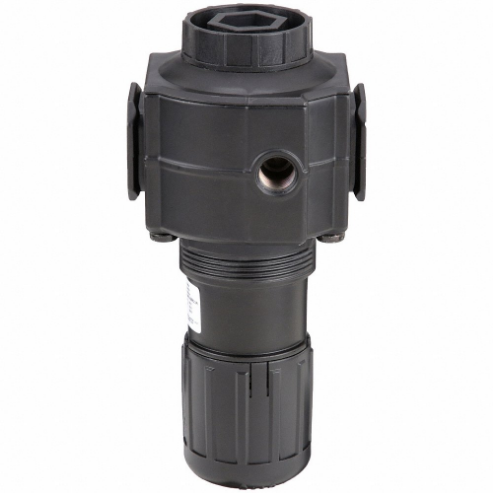

| Item | Air Regulator |
| Adjustment Knob | Non Rising , Nonrising |
| Adjustment Mechanism | Nonrising |
| Adjustment Range | 5 psi to 150 psi |
| Adjustment Range (regulators) | 5 psi to 150 psi |
| Air Inlet Gender | Female |
| Air Outlet Gender | Female |
| Body Material | Aluminum |
| Max. Flow Rate | 220 CFM |
| Max. Pressure | 300 psi |
| Max. Temp. | 175°F |
| Overall Height | 6.67" |
| Overall Width | 3.15" |
| Pressure Gauge Included | No |
| Valve Design | Balanced |
| Air Inlet Size | 3/4" NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Maximum Flow Rate | 220 CFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 175°F |
| Maximum Regulated Pressure | 150 psi |
| Minimum Regulated Pressure | 5 psi |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Series | Standard Duty |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 29.46 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 8.38 |
| HS code | 8481100060 |
| Country of Origin | CN |
| Product | Model | Adjustment Range | Body Material | Max. Flow | Max. Pressure | Max. Temp. | Overall Height | Overall Width | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4ZM05 | 5 to 125 psi | Zinc | 14 cfm | 300 psi | 150 Degrees F | 2.91" | 1.63" | 1/8" NPT | €38.46 | |
 |
4ZM06 | 5 to 125 psi | Zinc | 15 cfm | 300 psi | 150 Degrees F | 2.91" | 1.63" | 1/4" NPT | €36.91 | |
 |
4ZM07 | 5 to 125 psi | Aluminum | 440 cfm | 300 psi | 175 Degrees F | 7.26" | 4.25" | 1/8" NPT | €34.15 | |
 |
4ZM08 | 5 to 125 psi | Aluminum | 15 cfm | 300 psi | 175 Degrees F | 2.91" | 4.25" | 1/4" NPT | €29.46 | |
 |
4ZM09 | 5 to 125 psi | Aluminum | 440 cfm | 300 psi | 175 Degrees F | 7.26" | 4.25" | 3/4" NPT | €203.39 | |
 |
4ZM10 | 5 to 125 psi | Aluminum | 2,000 cfm | 450 psi | 175 Degrees F | 9.71" | 5.98" | 1" NPT | €172.79 | |
 |
4ZM11 | 5 to 125 psi | Zinc | 12 cfm | 250 psi | 150 Degrees F | 2.25" | 1.65" | 1-1/2" NPT | €211.90 |
