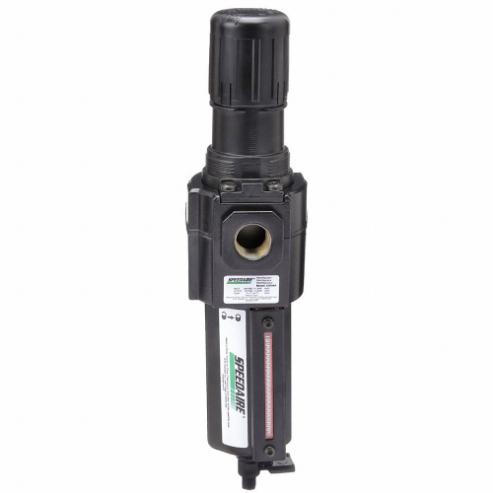

| Item | Filter/Regulator |
| Adjustable Pressure Range | 5 psi to 150 psi |
| Adjustment Knob | Non Rising |
| Adjustment Range | 5 psi to 150 psi |
| Bowl Material | Polycarbonate |
| Bowl Size | 7 oz. |
| Filter Rating | 5 µm |
| Max. Flow Rate | 140 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 175°F |
| Overall Height | 11.93" |
| Overall Width | 3.15" |
| Pipe Size | 1/2" |
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Reinforced Nylon |
| Air Flow Direction | Left To Right |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Differential Pressure Indicator Included | No |
| Drain Included | Yes |
| Drain Part Compatbility | 114X34 |
| Drain Type | Manual |
| Duty Rating | Intermediate Duty |
| Filter Bowl Capacity | 7 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Aluminum |
| Filter Bowl Material | Metal With Sight Gauge |
| Filter Efficiency | 95% |
| Filter Element Material | PE |
| Filter Type | Particulate |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Includes | Metal Bowl |
| Maximum Flow Rate | 140 CFM |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 175°F |
| Maximum Regulated Pressure | 150 psi |
| Minimum Operating Pressure | 0.85 MPa |
| Minimum Operating Temperature | 5°C |
| Minimum Regulated Pressure | 5 psi |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Pressure Control Type | Relieving |
| Pressure Gauge Included | No |
| Pressure Gauge Port Gender | Female |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | PTF |
| Seal Material | Rubber |
| Series | Standard Duty |
| Sight Gauge Included | No |
| Weight | 1.15 Kg |
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 44.2 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 8.38 |
| HS code | 8481100040 |
| Country of Origin | CN |
| Product | Model | Adjustment Range | Bowl Material | Bowl Size | Filter Rating | Max. Flow | Max. Pressure | Max. Temp. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4ZK74 | 5 to 125 psi | Polycarbonate | 1.0 oz. | 5 micron | 13 cfm | 150 psi | 125 Degrees F | 6.44" | €45.69 | |
 |
4ZK75 | 5 to 125 psi | Polycarbonate | 1.0 oz. | 5 micron | 14 cfm | 150 psi | 125 Degrees F | 6.44" | €55.49 | |
 |
4ZK76 | 5 to 125 psi | Polycarbonate | 1.0 oz. | 5 micron | 14 cfm | 150 psi | 125 Degrees F | 6.44" | €64.72 | |
 |
4ZK77 | 5 to 125 psi | Polycarbonate | 1.0 oz. | 5 micron | 12 cfm | 150 psi | 125 Degrees F | 6.44" | €79.90 | |
 |
4ZK78 | 5 to 125 psi | Metal with Sight Gauge | 32.0 oz. | 5 micron | 509 cfm | 250 psi | 175 Degrees F | 12.9" | €341.46 | |
 |
4ZK79 | 5 to 125 psi | Metal with Sight Gauge | 32.0 oz. | 40 micron | 509 cfm | 250 psi | 175 Degrees F | 12.9" | €349.77 | |
 |
4ZK80 | 5 to 100 psi | Polycarbonate | 1.0 oz. | 0.01 micron | 4 cfm | 150 psi | 125 Degrees F | 6.44" | €103.59 |
