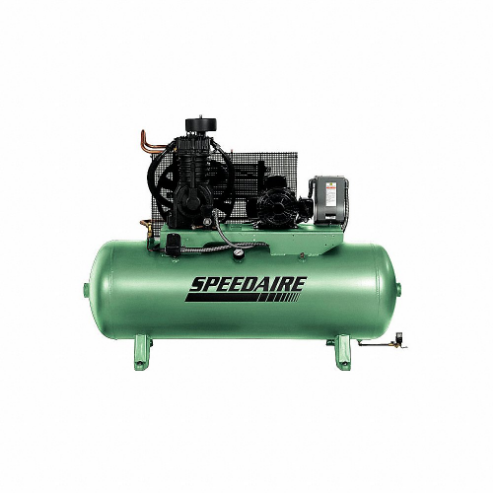

SPEEDAIRE 35WC46 Electric Air Compressor 2 Stage 5hp 16.6cfm
Due to weight and dimension restrictions, please request a shipping quote
€4,970.60 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Electric Air Compressor |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 83 dBA |
| Enclosure Rating | Open Dripproof |
| Enclosure Type | Totally Enclosed |
| Finish | Powder Coat |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 16.6 CFM |
| Includes | Air Cooled Aftercooler, Electronic Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-Voltage Motor |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 175 psi |
| Motor Type | Open Dripproof |
| Number Of Stages | 2 |
| Outlet Gender | Female |
| Package Type | Fully Packaged |
| Phase | 3 |
| Phase - Electrical | 3 |
| Pump Location | Top Mount |
| Pump Location - Air Compressor | Tank Mounted |
| Pump Oil Capacity | 2 qt |
| Pump Rpm | 700 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Tank Size | 80 gal. |
| Tank Style | Horizontal |
| Tank Style - Air Compressor | Horizontal |
| Tank Type | Horizontal |
| Voltage | 208-230/460V |
| Compressor Package Type | Fully Packaged |
| Current Rating | 14.2-12.8/6.4A |
| Duty Cycle | Continuous |
| Free Air Flow Rate @ Maximum Pressure | 16.4 CFM |
| Frequency | 60 Hz |
| Inlet Size | 3/4" |
| Input Voltage | 208-230/460V AC |
| Life Expectancy | 15000 hrs. |
| Maximum Operating Pressure | 175 psi |
| Maximum Speed | 700 RPM |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 135 psi |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 5 hp |
| Overall Height | 46" |
| Overall Length | 63" |
| Overall Width | 21" |
| Sound Level | 83 dbA |
| Standards | ASME APPROVED, CSA |
| Ship weight (kg) | 229.5 |
| Ship height (cm) | 116.84 |
| Ship length (cm) | 160.02 |
| Ship width (cm) | 53.34 |
| HS code | 8414801635 |
| Country of Origin | US |
| Product | Model | Amps | Hp | Overall Height | Overall Length | Overall Width | Phase | Tank Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35WC41 | 14.2-12.8/6.4 | 5 | 46" | 63" | 21" | 3 | 80 gal. | 208-230/460 | €3,999.87 | RFQ
|
 |
35WC44 | 22 | 5 | 46 | 63 | 21 | 1 | 80 gal. | 208-230 | €5,161.53 | RFQ
|
 |
35WC49 | 19.8-17.9/9 | 7.5 | 46" | 63" | 21" | 3 | 80 gal. | 208-230/460 | €4,357.65 | RFQ
|
 |
35WC52 | 19.8-17.9/9 | 7.5 | 46" | 63" | 21" | 3 | 80 gal. | 208-230/460 | €5,333.74 | RFQ
|
 |
35WC53 | 27-24.4/12.2 | 10 | 54 | 69" | 25 | 3 | 120 gal. | 208-230/460 | €6,293.46 | RFQ
|
 |
35WC54 | 41.1-37.2/18.6 | 15 | 54" | 69" | 25" | 3 | 120 gal. | 208-230/460 | €7,307.64 | RFQ
|
 |
35WC55 | 27-24.4/12.2 | 10 | 54 | 69" | 27 | 3 | 120 gal. | 208-230/460 | €7,102.96 | RFQ
|
