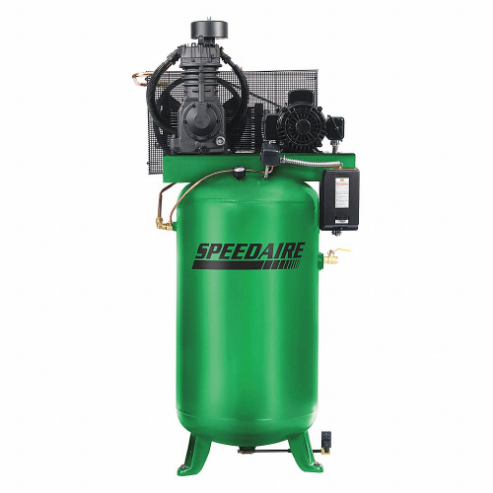

SPEEDAIRE 35WC43 Electric Air Compressor 2 Stage 5hp 16.6cfm
Due to weight and dimension restrictions, please request a shipping quote
€4,318.15 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Electric Air Compressor |
| Amps | 22A |
| Asme Tank | Yes |
| Compressor Type | Simplex , Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Dba @ 3 Feet | 83 dBA |
| Enclosure Rating | Open Dripproof |
| Enclosure Type | Totally Enclosed |
| Finish | Powder Coat |
| Fnpt Outlet Size | 3/4" |
| Free Air Cfm @ Max. Pressure | 16.6 CFM |
| Includes | Air Cooled Aftercooler, Electronic Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve |
| Lubrication Type | Splash Lubricated |
| Max. Pressure | 175 psi |
| Motor Type | Open Dripproof |
| Number Of Stages | 2 |
| Outlet Gender | Female |
| Overall Height | 71" |
| Package Type | Fully Packaged |
| Phase | 1 |
| Phase - Electrical | 1 |
| Pump Location | Top Mount |
| Pump Location - Air Compressor | Tank Mounted |
| Pump Oil Capacity | 2 qt |
| Pump Rpm | 700 RPM |
| Pump Style | Simplex |
| Pump Type | Reciprocating |
| Tank Size | 80 gal. |
| Tank Style | Vertical |
| Tank Style - Air Compressor | Vertical |
| Tank Type | Vertical |
| Compressor Package Type | Fully Packaged |
| Current Rating | 21.1A |
| Duty Cycle | Continuous |
| Free Air Flow Rate @ Maximum Pressure | 16.4 CFM |
| Frequency | 60 Hz |
| Inlet Size | 3/4" |
| Input Voltage | 208-230V AC |
| Life Expectancy | 15000 hrs. |
| Maximum Operating Pressure | 175 psi |
| Maximum Speed | 700 RPM |
| Off Pressure Switch Setting | 175 psi |
| On Pressure Switch Setting | 135 psi |
| Outlet Size | 3/4" |
| Outlet Type | NPT |
| Output Power | 5 hp |
| Overall Length | 35" |
| Overall Width | 27" |
| Sound Level | 83 dbA |
| Standards | ASME APPROVED, CSA |
| Ship weight (kg) | 229.5 |
| Ship height (cm) | 180.34 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 68.58 |
| HS code | 8414801635 |
| Country of Origin | US |
| Product | Model | Amps | Hp | Input Voltage | Overall Height | Overall Length | Overall Width | Phase | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35WC40 | 22 | 5 | - | 71" | 35" | 27" | 1 | - | €3,979.03 | RFQ
|
 |
35WC42 | 14.2-12.8/6.4 | 5 | - | 71" | 35 | 27 | 3 | - | €3,568.48 | RFQ
|
 |
35WC45 | 14.2-12.8/6.4 | 5 | - | 71" | 35 | 27 | 3 | - | €4,375.12 | RFQ
|
 |
35WC47 | 31 | 7.5 | - | 71" | 35" | 27" | 1 | - | €4,084.09 | RFQ
|
 |
35WC48 | 19.8-17.9/9 | 7.5 | - | 71" | 35 | 27 | 3 | - | €3,963.65 | RFQ
|
 |
35WC50 | 31 | 7.5 | - | 71" | 35 | 27 | 1 | - | €4,550.68 | RFQ
|
 |
35WC51 | 19.8-17.9/9 | 7.5 | - | 71" | 35 | 27 | 3 | - | €4,676.97 | RFQ
|
