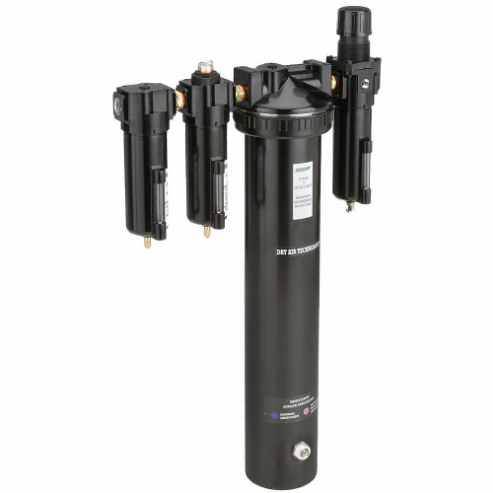

SPEEDAIRE 2YNL6 Desiccant Dryer 5 Stage 30 Cfm
Get it by Wednesday, Jun 18
€864.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | 5 Stage Desiccant Dryer |
| (f)npt Inlet | 1/2" |
| (m)npt Outlet (in.) | 0.5" |
| Adjustment Range - Air Treatment | 5 psi to 125 psi |
| Application | Dry Air |
| Body Material | Metal |
| Bowl | Metal |
| Bowl Capacity | 6.7 lbs. |
| Bowl Material | Metal |
| Bowl Size | 6.7 lbs. |
| Cfm | 50 CFM |
| Desiccant Material | Silica Gel |
| Dew Point | -30°F |
| Drain Included | Yes |
| Drain Type | Overnight |
| Element Material | Sintered Bronze |
| Filter Element Material | Sintered Bronze |
| Filtered Substance | Debris, Dirt, Dust, Oil, Water, Water Vapor |
| For Removal Of | Debris, Dirt, Oil, Oil Vapors, Pipe Scale, Rust, Water, Water Vapors |
| Height | 27" |
| Includes | Desiccant Beads, Shut Off Valve |
| Inlet/outlet Nptf (in.) | 0.5" |
| Length | 15 1/2" |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 120°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Number Of Stages | 5 |
| Type | Dry Air |
| Width | 4" |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Filter Element Compatibility | BKF46W, DK35, EK35-3, SC35, SK35, VKB75 |
| Filter Rating | 0.01 µm, 3 µm, 5 µm, 40 µm |
| Filters Included | Yes |
| Iso Class | Class 2 |
| Maximum Flow Rate | 30 CFM |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 120°F |
| Overall Height | 27" |
| Overall Length | 15 1/2" |
| Overall Width | 18 1/4" |
| Pressure Drop | 10 psi |
| Stage 1 Filter Type | 40 µm Water Removing Filter |
| Stage 2 Filter Type | 0.01 micron Oil Removing Filter |
| Stage 3 Filter Type | 1 gal. Desiccant Filter |
| Stage 4 Filter Type | 3 micron Filter |
| Standards | ISO |
| Total Air Capacity | 12500 cu. ft. |
| Ship weight (kg) | 11.75 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 46.36 |
| HS code | 8419390180 |
| Country of Origin | US |
| Product | Model | Bowl Size | Cfm | Height | Item | Price | |
|---|---|---|---|---|---|---|---|
 |
2YNL7 | 1.8 Lb. | 25 | 16.5" | 4 Stage Desiccant Dryer | €668.04 |
