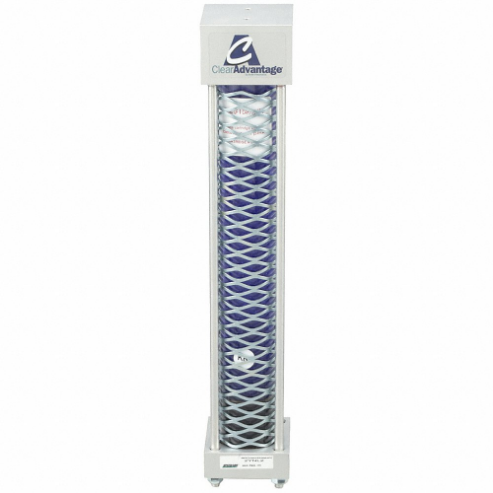

| Item | Desiccant Filter/Dryer |
| (f)npt Inlet | 1/2" |
| (m)npt Outlet (in.) | 0.5" |
| Application | Refrigerated Dryer, Wood Working |
| Bowl | Clear Poly |
| Bowl Capacity | 1.5 lbs. |
| Bowl Guard Included | Yes |
| Bowl Material | Metal |
| Bowl Size | 1.5 lbs. |
| Bracket Kit Included | Yes |
| Cfm | 30 CFM |
| Desiccant Material | Silica Gel |
| Dew Point | -30°F |
| Diameter | 3" |
| Disposable | Yes |
| Duty Rating | Light Duty |
| Element Material | Sintered Bronze |
| Filter Element Material | Sintered Bronze |
| Filter Type | Particulate |
| Filtered Substance | Debris, Dirt, Dust, Oil, Oil Vapor, Water, Water Vapor |
| Height | 16 7/8" |
| Includes | Mounting Brackets, Safety Guard |
| Inlet/outlet Nptf (in.) | 0.5" |
| Item - Desiccant Dryers | Desiccant Air Dryer |
| Length | 16 7/8" |
| Max. Operating Pressure | 175 psi |
| Max. Operating Temp. | 125°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Number Of Stages | 5 |
| Type | Quiet Flow |
| Width | 3" |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Filter Rating | 0.4 µm |
| Filters Included | Yes |
| Iso Class | Class 2 |
| Maximum Ambient Temperature | 100°F |
| Maximum Flow @ 100 Psi | 30 |
| Maximum Flow Rate | 30 CFM |
| Maximum Operating Pressure | 120 psi |
| Maximum Operating Temperature | 125°F |
| Outside Diameter | 3" |
| Overall Height | 16 7/8" |
| Overall Length | 16 7/8" |
| Overall Width | 3" |
| Stage 1 Filter Type | 0.4 µm Sintered Bronze Filter |
| Stage 4 Filter Type | 0.4 µm Sintered Bronze Filter |
| Standards | ISO |
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 42.86 |
| Ship length (cm) | 42.86 |
| Ship width (cm) | 7.62 |
| HS code | 8419390180 |
| Country of Origin | US |
| Product | Model | Bowl Size | Cfm | Diameter | Height | Length | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
2YNL4 | 3.4 Lb. | 40 | 4" | 21.25" | 21.375" | 4" | €609.77 |
