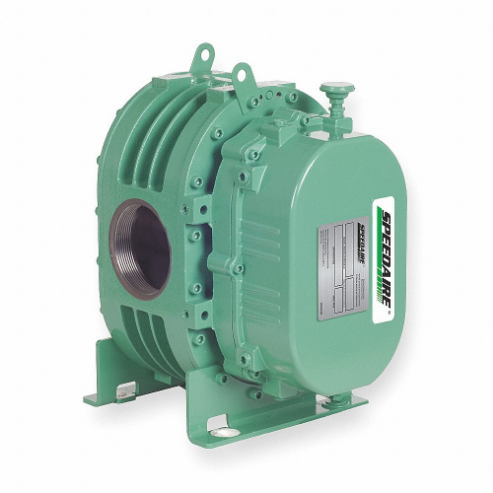

SPEEDAIRE 2EPR4 Positive Displacement Blower, Vertical Bottom Hand, 3 Innpt, 2.04 Cu In/Rev Displacement
Get it by Wednesday, Jun 18
€5,684.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Blower |
| Cfm Range | 197 CFM , 579 CFM |
| Configuration | V BHC |
| Displacement | 2.04 cu. in./rev. |
| Duty Cycle | Continuous |
| Inlet Gender | Female |
| Inlet Size | 3" |
| Keyway Length | 2" |
| Keyway Width | 0.188" |
| Max. Pressure | 7 psi |
| Max. Vacuum | 14 in. hg |
| Outlet Gender | Female |
| Outlet Size | 3" |
| Outlet Type | NPT |
| Overall Depth | 8.37" |
| Overall Height | 12 17/25" |
| Overall Width | 18.67" |
| Rpm Range | 1337 RPM , 3600 RPM |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/8" |
| Sub-brand | Sa 4700V, 47 Urai, 4007 |
| Inlet Type | NPT |
| Maximum Flow Rate | 579 CFM |
| Maximum Operating Pressure | 7 psi |
| Maximum Power Required | 20.3 hp |
| Maximum Speed | 3600 RPM |
| Maximum Vacuum | 14 in. hg |
| Minimum Flow Rate | 197 CFM |
| Minimum Power Required | 1.6 hp |
| Minimum Speed | 1337 RPM |
| Shaft Diameter | 7/8" |
| Standards | ISO 9001 |
| Ship weight (kg) | 82.35 |
| Ship height (cm) | 32.23 |
| Ship length (cm) | 21.27 |
| Ship width (cm) | 47.42 |
| Country of Origin | US |
