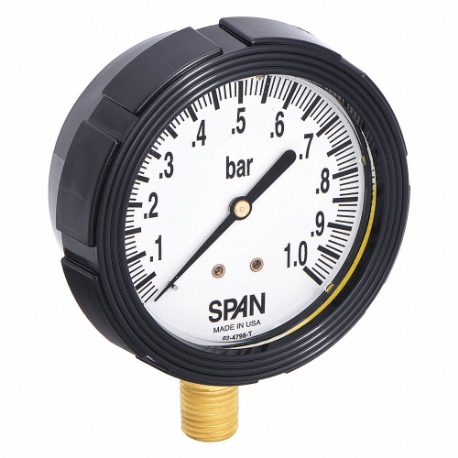

| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Case Construction | Corrosion Resistant |
| Case Material | Nylon |
| Dial Color | White |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Movement Type | Swiss |
| Pressure Range | 0 Bar to 1 Bar |
| Primary Scale Minor Graduations | 0.02 |
| Primary Scale Numeric Increments | 2.0 |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Application | Fire Monitoring, Hydraulics, Marine, Military, Transportation, Waste Water Or Slurry, Water Purification Or Irrigation |
| Bezel Material | Zytel Nylon |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Depth | 1.41" |
| Case Diameter | 2.8" |
| Cleaned For Oxygen Service | No |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Zytel Nylon |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Ip/nema Rating | IP65, NEMA 4X |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Mounting Type | Stem Mount |
| Movement Material | Copper Alloy |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 1 |
| Primary Scale Units | Bar |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | LFS-210 Series |
| Socket Material | Brass |
| Standards | ANSI/ASME |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Phosphor Bronze |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
LFS-210-(1/0/2 BAR)-G | Compound Gauge | €67.75 | |
 |
LFS-210-(1/0/28 BAR)-G | Compound Gauge | €67.75 | |
 |
LFS-210-(1/0/3 BAR)-G | Compound Gauge | €67.75 | |
 |
LFS-210-(1/0/5 BAR)-G | Compound Gauge | €67.75 | |
 |
LFS-210-(1/0/9 BAR)-G | Compound Gauge | €67.75 | |
 |
LFS-210-30Hg/15PSI-G-CERT | Compound Gauge | €94.89 | |
|
LFS-210-30Hg/150PSI-G-CERT | Compound Gauge | €94.89 |
