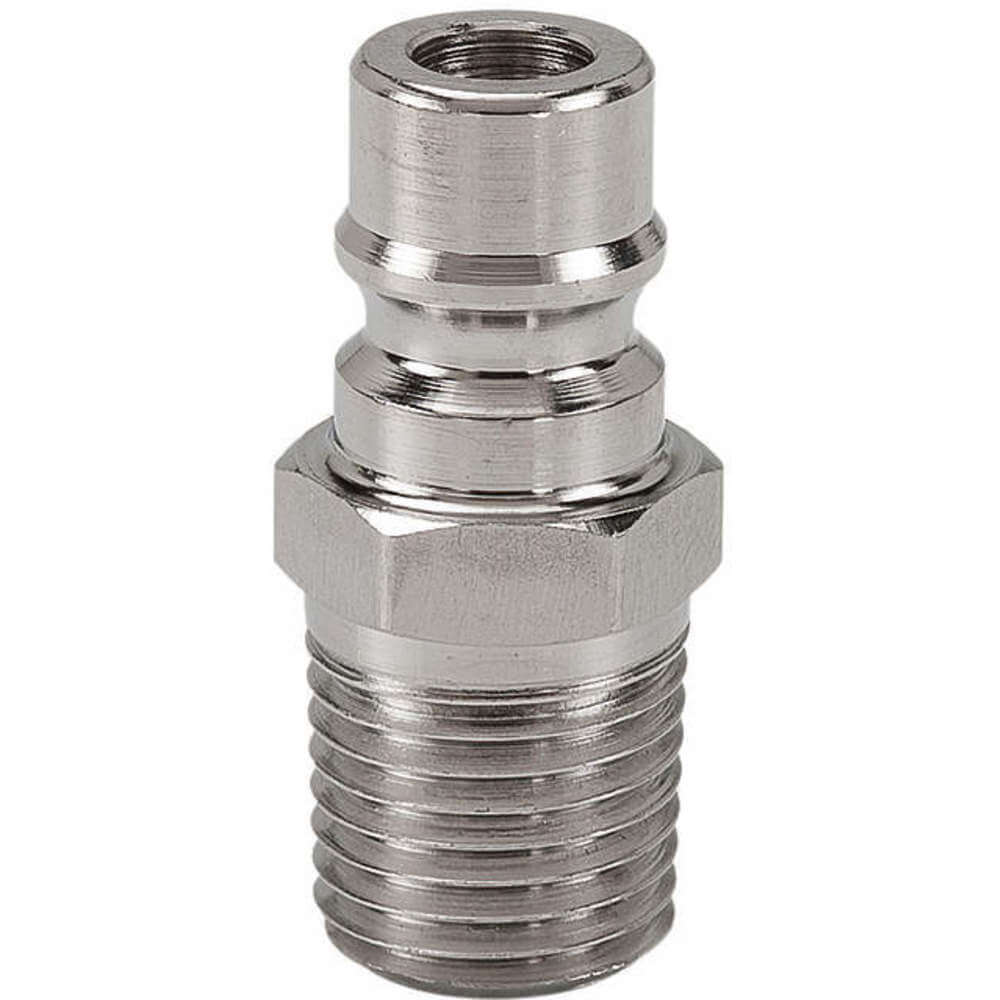

| Item | Hydraulic Coupler Nipple |
| Body Material | Stainless Steel |
| Body Size | 1/4" |
| Coupler Finish | Plain |
| Coupling Component | Plug |
| Coupling Locking Type | Ball |
| Coupling Size | 1/4" |
| Finish | Plain |
| Finish/coating | Plain |
| Flow Rate | 3.8 GPM |
| Gender | Male |
| Grade | Grade 316 |
| Hose Fitting Gender | Male |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | No |
| Length | 1 7/32" |
| Locking Mechanism | Ball |
| Locking Type | Ball |
| Max. Pressure | 10000 psi |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Seal Material | Buna |
| Shut Off | No |
| Thread Size | 1/8"-27 |
| Valve Design | Poppet |
| Valve Type | Without Valve |
| Connection Type | NPT |
| Fitting Type | MNPT |
| Max. Flow Rate | 14.38 LPM |
| Max. Outside Dia. | 41/64" |
| Max. Working Pressure @ 70 F | 5000 psi |
| Overall Length | 1 1/64" |
| Series | H |
| Sleeve Material | 316 Stainless Steel |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 11.11 |
| Ship width (cm) | 10.8 |
| HS code | 7307290030 |
| Product | Model | Body Material | Body Size | Connection Type | Finish | Flow Rate | Length | Max. Pressure | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SVHN8-8M | 316 Stainless Steel | 1/2" | MNPT | Plain | 14 gpm | 2 15/32" | 3750 psi | -40 Degrees to 200 Degrees F | €307.53 | |
|
SVHN8-8MV | 316 Stainless Steel | - | MNPT | Plain | 14 gpm | - | 3750 psi | -20 Degrees to 375 Degrees F | €310.04 | |
 |
BVHN12-12F | Brass | - | Fnpt | Plain | 25 gpm | - | 2000 psi | -40 Degrees to 200 Degrees F | €87.67 | |
|
BVHN12-12FV | Brass | - | Fnpt | Plain | 25 gpm | - | 2000 psi | -20 Degrees to 375 Degrees F | €103.09 | |
 |
BVHN12-12M | Brass | - | MNPT | Plain | 14 gpm | - | 2000 psi | -40 Degrees to 200 Degrees F | €101.83 | |
|
BVHN16-16F | Brass | - | Fnpt | Plain | 13 gpm | - | 1750 psi | -40 Degrees to 200 Degrees F | €168.46 | |
|
BVHN16-16FV | Brass | - | Fnpt | Plain | 13 gpm | - | 1750 psi | -20 Degrees to 375 Degrees F | €197.52 |
