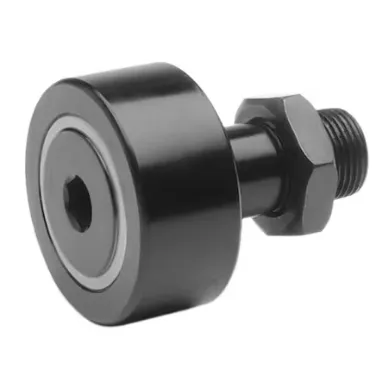

| Item | Cam Follower |
| Bearing Material | Alloy Steel |
| Bearing Material Grade | AISI 52100 |
| Bearing Type | Needle Roller |
| Closure | Double Shielded |
| Drive Location | Stud |
| Drive Type | Slotted |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 23000 lbf. |
| Face Design | Screwdriver Slot |
| Features | Made With A Double Row Of Heavy Rollers For Extremely High Load Applications. These Heavy Duty Bearings Are AssembLED With Metallic Side Shields Helping To Retain Grease And Keep Out Containments. |
| Max. Speed | 6500 RPM |
| Max. Temp. | 250°F |
| Min. Temp. | -30°F |
| Overall Length | 52 mm |
| Roller Dia. | 35 mm |
| Roller Head Type | Crowned |
| Roller Material | Alloy Steel |
| Roller Width | 18 mm |
| Rolling Element Rows | 2 |
| Static Radial Load Capacity | 27000 lbf. |
| Stud Dia. | 16 mm |
| Stud Length | 32.5 mm |
| Stud Material | Carbon Steel |
| Stud Thread Length | 17 mm |
| Stud Thread Size | M16 x 1.5 |
| Stud Type | Eccentric |
| System Of Measurement | Metric |
| Maximum Speed | 6500 RPM Grease |
| Maximum Temperature | 250°F |
| Minimum Temperature | -30°F |
| Roller Diameter | 35 mm |
| Roller Material Grade | Grade 52100 |
| Standards | ABMA |
| Stud Diameter | 16 mm |
| Ship weight (kg) | 0.18 |
| Model | Item | Price | |
|---|---|---|---|
| CR-1-1/2-XB-U | Cam Follower | €131.95 | |
| CR-1-1/2-XB-SS-FG | Cam Follower | €369.00 | |
| CR-1-1/4-XB-SS-FG | Cam Follower | €301.16 | |
| CR-1-1/8-XB-SS-FG | Cam Follower | €257.03 | |
| CR-1-3/4-XB-U | Cam Follower | €132.57 | |
| CR-1-3/4-XB-SS-FG | Cam Follower | €456.38 | |
| CR-1-3/8-XB-SS-FG | Cam Follower | €314.84 |
