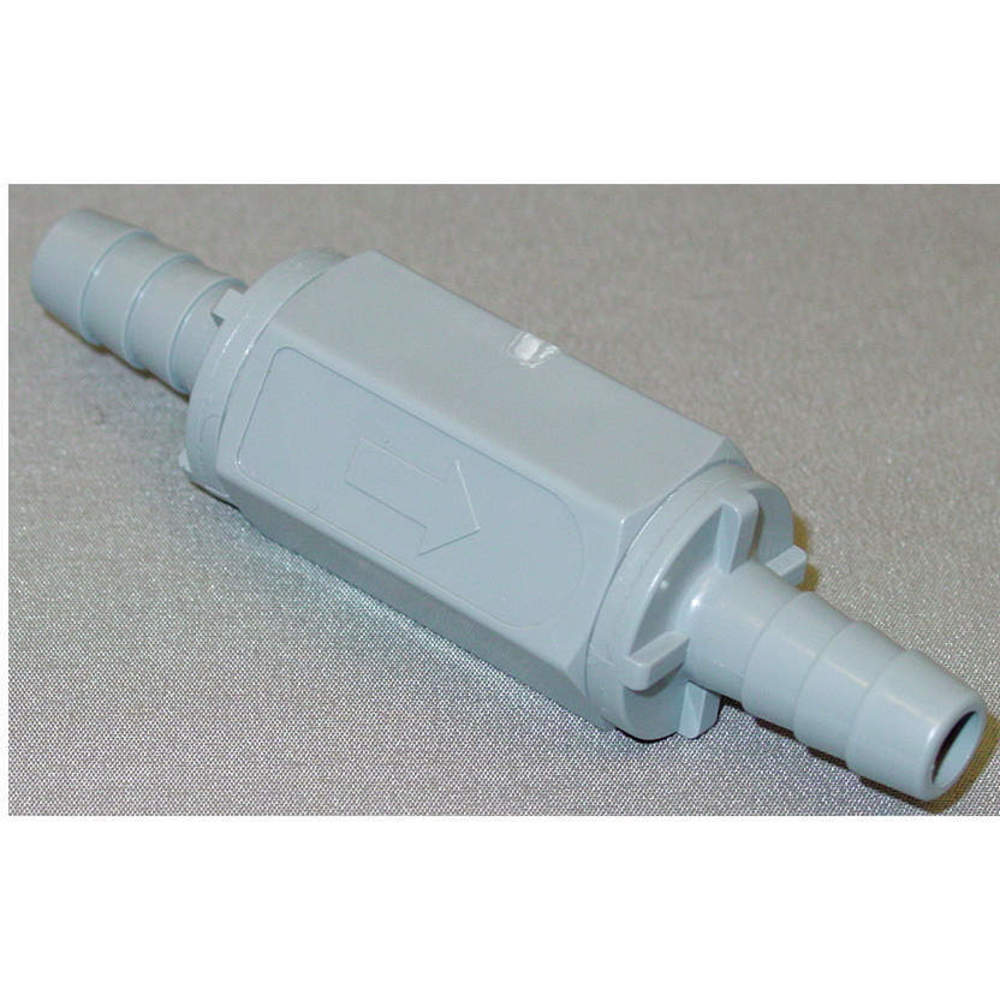

| Item | Ball Cone Spring Check Valve |
| Color | Gray |
| Connection Type | Barbed |
| Cracking Pressure | 1 psi |
| Hex Size | 1" |
| Length | 3.531" |
| Material | PVC |
| Max. Temp. | 140°F |
| Max. Water Pressure | 125 psi |
| Mounting Position | Horizontal/Vertical |
| Overall Height | 1" |
| Seal Material | Viton |
| Seat Material | Grey PVC |
| Size | 3/8" |
| Spring Material | Stainless Steel |
| Width | 1" |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Body Material | PVC |
| Check Mechanism | Ball |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type - Side 1 | Barb |
| Connection Type - Side 2 | Barb |
| For Media | Chemicals |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temp. Range | -20°F to 140°F |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -20°F |
| Overall Length | 3.53" |
| Pipe Size | 3/8" |
| Silent Check | Standard |
| Standards | NSF 42 |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 426 |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 8481301090 |
| Country of Origin | US |
| Product | Model | Connection Type | Length | Seal Material | Size | Price | |
|---|---|---|---|---|---|---|---|
 |
PVC CHK 426-2F2F-B | Fnpt | 2 29/32" | Buna | 1/8" | €32.91 | |
|
PVC CHK 426-2F2F-F | Fnpt | 2 29/32" | Viton | 1/8" | €32.48 | |
 |
PVC CHK 426-4M4M-B | MNPT | 2 29/32" | Buna | 1/4" | €31.38 | |
|
PVC CHK 426-4M4M-F | MNPT | 2 29/32" | Viton | 1/4" | €32.83 | |
 |
PVC CHK 426-4M4F-B | MNPT x FNPT | 2 29/32" | Buna | 1/4" | €32.90 | |
|
PVC CHK 426-4M4F-F | MNPT x FNPT | 2 29/32" | Viton | 1/4" | €33.32 | |
 |
PVC CHK 426-4F4M-B | FPT x MPT | 2 29/32" | Buna | 1/4" | €31.06 |
