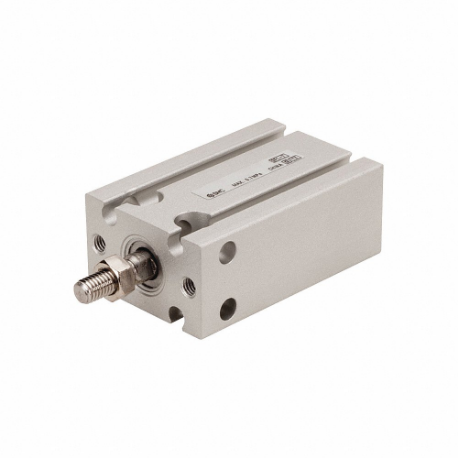

| Item | Cylinder |
| Body Material | Aluminum |
| Bore Diameter | 16 mm |
| Cushion Type | Rubber Cushion |
| Cylinder Action | Double Acting |
| Cylinder Type | Compact |
| For Fluid Type | Air |
| Magnetic Piston | Magnetic Piston |
| Maximum Operating Pressure | 101.5 MPa |
| Maximum Operating Temperature | 158°F |
| Minimum Operating Pressure | 8.7 MPa |
| Minimum Operating Temperature | 14°F |
| Mounting Style | Free |
| Number Of Rods | 1 |
| Overall Height | 20 mm |
| Overall Width | 32 mm |
| Piston Material | Aluminum |
| Piston Material Finish | Chromate Coated |
| Piston Rod Material | Stainless Steel |
| Piston Rod Material Grade | 304 |
| Rod Diameter | 6 mm |
| Rod Gender | Male |
| Rod Rotation | Rotating Rod |
| Rod Thread Size | M5 x 0.8 |
| Series | CU Series |
| Stroke Length | 10 mm |
| Weight | 35g |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
