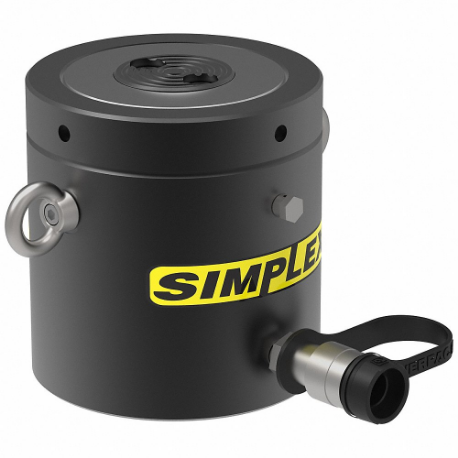

SIMPLEX RCL1002 Lock Nut Hydraulic Ram, 105 ton Nominal Capacity, 2 Inch Nominal Stroke Length | CU2YJU 800HE7

SIMPLEX RCL1002 Lock Nut Hydraulic Ram, 105 ton Nominal Capacity, 2 Inch Nominal Stroke Length

Item: CU2YJUModel: RCL1002Cross Ref: 800HE7
See variants (16)
In Stock

Get it by Tuesday, Jun 17

€2,362.86 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemHydraulic Ram
Cylinder TypeLock Nut
Effective Push Area20.57 sq. in.
Extended Height9.06"
Max. Pressure10150 psi
Nominal Capacity105 ton.
Nominal Stroke Length2"
Oil Capacity Push40.5 cu. in.
Outside Dia.6.69"
Plunger Dia.0.27"
Plunger Thread SizeM130 x 6
Retracted Height7.09"
Single Acting/double ActingSingle Acting
Stroke Length1.958"
SeriesRCL Series

Shipping Info:

Ship weight (kg) 30.69
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginES

Product Variants

ProductModelPrice
SIMPLEX RLL1002 Lock Nut Hydraulic Ram, 105 ton Nominal Capacity, 2 Inch Nominal Stroke Length | CU2YJV 800HH2 RLL1002€2,955.85
SIMPLEX RCL1006 Lock Nut Hydraulic Ram, 105 ton Nominal Capacity, 6 Inch Nominal Stroke Length | CU2YJW 800HE8 RCL1006€3,148.91
SIMPLEX RCL15012 Lock Nut Hydraulic Ram, 160 ton Nominal Capacity, 12 Inch Nominal Stroke Length | CU2YJX 800HE9 RCL15012€6,523.91
SIMPLEX RLL1502 Lock Nut Hydraulic Ram, 160 ton Nominal Capacity, 2 Inch Nominal Stroke Length | CU2YJY 800HH3 RLL1502€4,233.04
SIMPLEX RCL1502 Lock Nut Hydraulic Ram, 160 ton Nominal Capacity, 2 Inch Nominal Stroke Length | CU2YJZ 800HF0 RCL1502€4,279.41
SIMPLEX RCL1506 Lock Nut Hydraulic Ram, 160 ton Nominal Capacity, 6 Inch Nominal Stroke Length | CU2YKA 800HF1 RCL1506€5,175.75
SIMPLEX RCL302 Lock Nut Hydraulic Ram, 35 ton Nominal Capacity, 2 Inch Nominal Stroke Length, 6.85 sq in | CU2YKB 800HF3 RCL302€1,630.12
