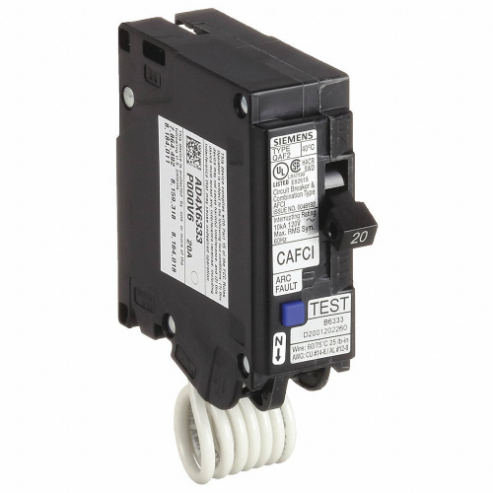

SIEMENS QA120AFC Circuit Breaker, Plug-In, 20 Ampere, 1 Phase, 10kAIC at 120V
In Stock : 470 UnitsGet it by Friday, Jun 13
€76.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Plug In Circuit Breaker |
| Amps | 20A |
| Frame Type | Q |
| Number Of Poles | 1 |
| Voltage | 120V AC |
| Voltage Type | AC |
| Ac Voltage Rating | 120V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Combination Arc Fault Circuit Interrupter |
| Dc Voltage Rating | Not Rated |
| Depth | 3.05" |
| For Use With | Siemens Single Phase Load Center |
| Length | 2 14/25" |
| Max. Air Rating | 10 kA at 120V AC |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Phase | Single |
| Series | QA Series |
| Standards | UL 1699 |
| Terminal Connection | Plug-in |
| Width | 3.1" |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 7.75 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 7.87 |
| HS code | 8536308000 |
| Country of Origin | MX |
| Model | Amps | Price | |
|---|---|---|---|
| QA115AF | 15 | €97.50 | |
| QA115AFC | 15 | €88.67 | |
| QA115AFCHH | 15 | €229.17 | |
| QA115AFCNL | 15 | €79.02 | |
| QA115AFCWG | 15 | €85.70 | |
| QA120AF | 20 | €97.50 | |
| QA120AFCH | 20 | €158.30 |
