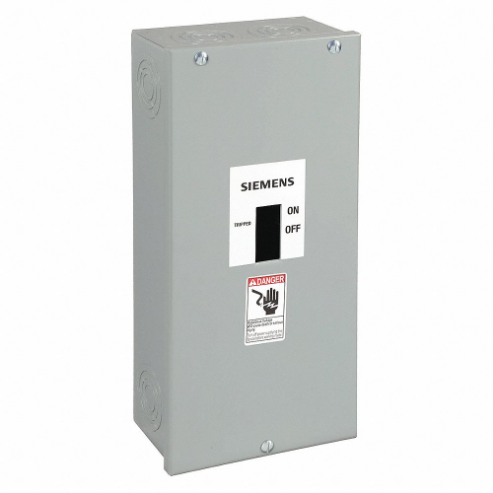

SIEMENS F6N3R Circuit Breaker Enclosure Fd 250 Amp 600vac 3p
In Stock : 14 UnitsGet it by Friday, Jun 13
€2,150.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Circuit Breaker Enclosure |
| Amps | 250A |
| Frame Type | FD |
| Number Of Poles | 3 |
| Voltage | 600V AC |
| Voltage Type | AC |
| Color | Gray |
| Cover Attachment Style | Screw On |
| Cover Closure Method | Lift-Off |
| Exterior Depth | 7.75" |
| Exterior Height | 38.13" |
| Exterior Width | 14.06" |
| Finish | Painted |
| For Use With | Siemens CFD6, FD6, FD6 A, FXD6, FXD6 A, HFD6, HFXD6 And HHFD6 Circuit Breakers |
| Location | Outdoor |
| Material | Steel |
| Max. Operating Temp. | 167°F |
| Min. Operating Temp. | -13°F |
| Mounting Style | Surface |
| Nema Rating | 3R |
| Number Of Spaces | 3 |
| Recommended Interior | Included |
| Recommended Neutral Assmebly Kit | N250 |
| Recommended Service Ground Kit | Included |
| Recommended Surface Cover | Included |
| Ship weight (kg) | 19.67 |
| Ship height (cm) | 96.85 |
| Ship length (cm) | 96.85 |
| Ship width (cm) | 35.71 |
| HS code | 8538903000 |
| Country of Origin | US |
