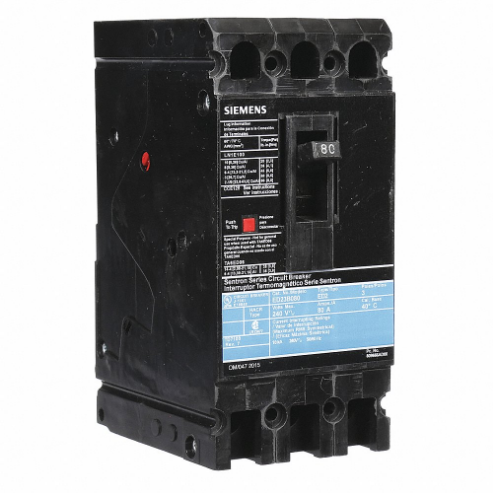

| Item | Bolt On Circuit Breaker |
| Aic Rating | 10 kAIC @ 240V |
| Amps | 80A |
| Frame Type | ED |
| Number Of Poles | 3 |
| Voltage | 240V |
| Voltage Type | AC |
| Ac Voltage Rating | 240V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A/ED |
| Height | 6.34" |
| High Amp Trip Setting | 80A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 80A |
| Max. Air Rating | 10 kA at 240V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 10 AWG |
| Phase | Three |
| Phase Connection | ABC |
| Series | ED2 Series |
| Standards | HACR RATED, UL LISTED |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Width | 3" |
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 16.1 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
| Country of Origin | MX |
