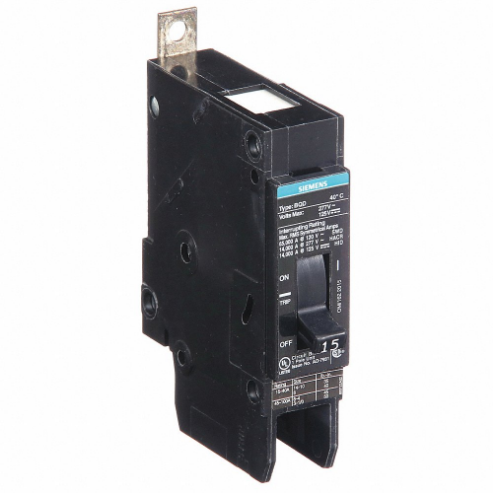

| Item | Bolt On Circuit Breaker |
| Frame Type | BQD |
| Number Of Poles | 1 |
| Voltage | 277V |
| Voltage Type | AC |
| Ac Voltage Rating | 277V AC |
| Amps | 15A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | P1 |
| Dc Voltage Rating | 125V DC |
| Depth | 2.7" |
| For Use With | Siemens P1 Panelboards |
| Frame Size | 100A/BQD |
| Length | 4.49" |
| Max. Air Rating | 14 kA at 277V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Phase | Single |
| Series | BQD Series |
| Standards | CSA-C22.2, IEC 60947-2, UL 489 |
| Terminal Connection | Lug |
| Width | 1" |
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 11.4 |
| Ship width (cm) | 2.54 |
| HS code | 8536200020 |
| Country of Origin | MX |
