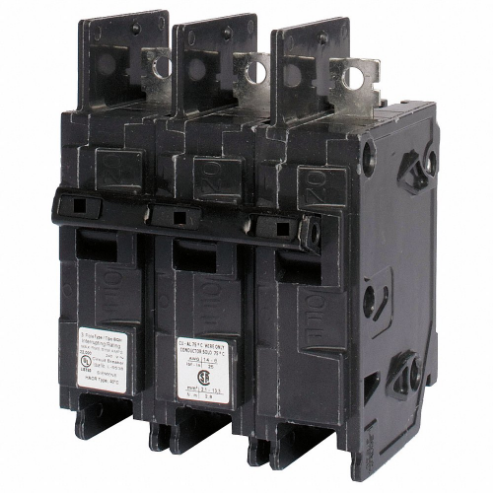

SIEMENS BQ3B045H Bolt On Circuit Breaker, 3 Phase, 22kAIC at 240V, 3 Pole
In Stock : 6 UnitsGet it by Friday, Jun 13
€278.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Bolt On Circuit Breaker |
| Amps | 45A |
| Frame Type | BQ |
| Number Of Poles | 3 |
| Voltage | 240V |
| Voltage Type | AC |
| Ac Voltage Rating | 240V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | High Interrupting Capacity |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | Siemens Panelboards |
| Frame Size | 125A/BQH |
| Length | 3" |
| Max. Air Rating | 22 kA at 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| Min. Wire Size | 8 AWG |
| Phase | Three |
| Series | BQH Series |
| Standards | HACR RATED, UL LISTED |
| Terminal Connection | Lug |
| Width | 3" |
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
| Country of Origin | MX |
| Product | Model | Amps | Number Of Poles | Voltage | Price | |
|---|---|---|---|---|---|---|
 |
BQ1B010 | 10 | 1 | 120V | €28.69 | |
 |
BQ1B015 | 15 | 1 | 120V | €26.14 | |
 |
BQ1B01500S01 | 15 | 1 | 120V | €431.29 | |
|
BQ1B015H | 15 | 1 | 120V | €109.79 | |
|
BQ1B020 | 20 | 1 | 120V | €26.14 | |
|
BQ1B02000S01 | 20 | 1 | 120V | €285.68 | |
|
BQ1B020H | 20 | 1 | 120V | €109.79 |
