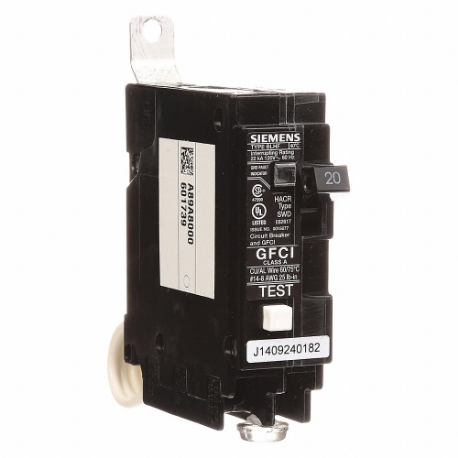

| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Dc Voltage | Not Rated |
| Depth | 2" |
| For Use With | Siemens Panelboards |
| Frame Size | 60A/BLHF |
| Length | 4" |
| Max. Air Rating | 22 kA |
| Mfr. Series | BFH |
| Number Of Poles | 1 |
| Terminal Connection Type | Lug |
| Width | 6" |
| Wire Size | 10 AWG , 12 AWG, 14 AWG |
| Dc Voltage Rating | Not Rated |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Phase | Single |
| Series | BFH Series |
| Standards | CSA CERTIFIED, HACR RATED, NOM CERTIFIED, UL LISTED |
| Terminal Connection | Lug |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10 |
| Ship length (cm) | 15 |
| Ship width (cm) | 5 |
| HS code | 8536308000 |
| Country of Origin | PH |
| Product | Model | Price | |
|---|---|---|---|
 |
BQ2B010 | €250.87 | |
 |
BQ2B100H00S01 | €820.05 | |
 |
B2100HH00S01 | €2,222.42 | |
 |
B2110H | €2,179.98 | |
 |
Q215HID | €140.52 | |
 |
BE215H | €2,144.08 | |
 |
B115H00S01 | €326.11 |
