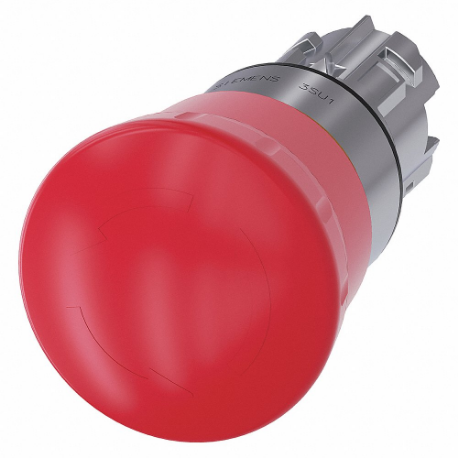

| Item | Push Button Operator |
| Action Type | Maintained / Trigger Action / Turn to Release |
| Basic Material | Metal |
| Bezel Material | Metal |
| Color | Red |
| Colour Button | Red |
| Construction Type Lens | Round |
| Head Material | Plastic |
| Ip Rating | IP69K |
| Legend | No Legend |
| Nema Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Suitable For Emergency Stop | Yes |
| Switching Function Latching | No |
| Type Of Operator | 40 mm Mushroom Head |
| With Front Ring | No |
| Action | Maintained |
| Features | Low Voltage |
| Head/lens Color | Red |
| Maintained Action Release | Twist |
| Mushroom Head Diameter | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1.39" |
| Overall Height | 1 4/25" |
| Overall Width | 1 4/25" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Series | 3SU Series |
| Standards | REACH, ROHS, WEEE (2012/19/EU) |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
3SU1050-1HF20-0AA0 | €172.40 | |
 |
3SU1050-1HR20-0AA0 | €269.93 | |
 |
3SU1000-1HF20-0AA0 | €137.83 | |
 |
3SU1050-0AA10-0AA0 | €24.54 | |
 |
3SU1000-0AA10-0AA0 | €20.58 | |
 |
3SU1000-0AA50-0AA0 | €20.32 | |
 |
3SU1050-0AA50-0AA0 | €23.82 |
