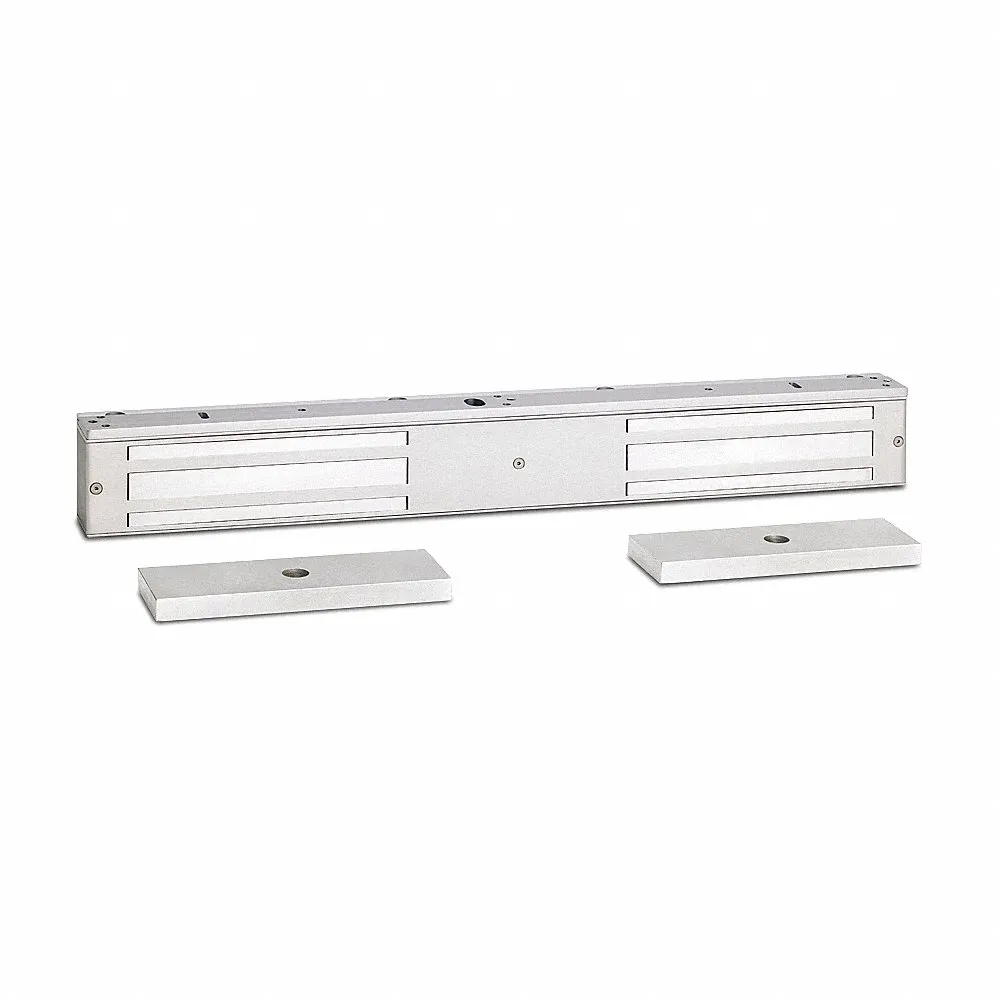

| Item | Electromagnetic Lock |
| Amp Draw @ 12v | 1.34A |
| Armature Depth | 1/2" |
| Armature Length | 7 3/8" |
| Armature Width | 2 3/8" |
| Features | For Double Outswing Doors |
| Finish | Clear Anodized |
| For Use With | High Security Double Lock Applications |
| Holding Force | 1650 lbs. |
| Includes | Mounting Hardware |
| Input Voltage | 12/24V DC |
| Lock Body Depth | 1.562" |
| Lock Body Length | 22.111" |
| Lock Body Width | 2 3/4" |
| Material | Steel |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Projection From Wall | 1.562" |
| Release Delay | Instantaneous |
| Strike Plate Depth | 1/2" |
| Strike Plate Length | 7 3/8" |
| Strike Plate Width | 2 3/8" |
| Total Projection | 1.562" |
| Type | Surface Mount |
| Current @ 12v | 1.34 mA |
| Current @ 24v | 700 mA |
| Includes Hardware | Hardware Included |
| Overall Height | 2 3/4" |
| Overall Length | 22" |
| Overall Width | 1 9/16" |
| Projection | 1 9/16" |
| Properties | Locking |
| Series | 1511 Series |
| Standards | ANSI/BHMA A156.23, CSFM, UL 1034, ULC-S104, ULC-S533 |
| Strike Plate Height | 1/2" |
| Ship weight (kg) | 9.68 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
1511SNAKVDBA | Electromagnetic Lock | €1,977.65 | |
|
1511SNDKVDB | Electromagnetic Lock | €1,980.70 | |
|
1511SNDKVBA | Electromagnetic Lock | €1,914.95 | |
|
1511SNAKV | Electromagnetic Lock | €1,731.52 | |
 |
180AIV | Electromagnetic Lock | €415.59 | |
|
180AIVD | Electromagnetic Lock | €499.12 | |
 |
1581VD | Electromagnetic Lock | €622.90 |
