| Ability To Relubricate | Yes |
| Base Length | 15" |
| Base To Center Height | 4" |
| Base Width | 4.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 7/8" |
| Bolt Spacing Max | 12.63" |
| Bolt Spacing Min | 9.63" |
| Bore Dia. | 3 1/2" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.219" |
| Dynamic Load Capacity | 21566 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.31" |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |

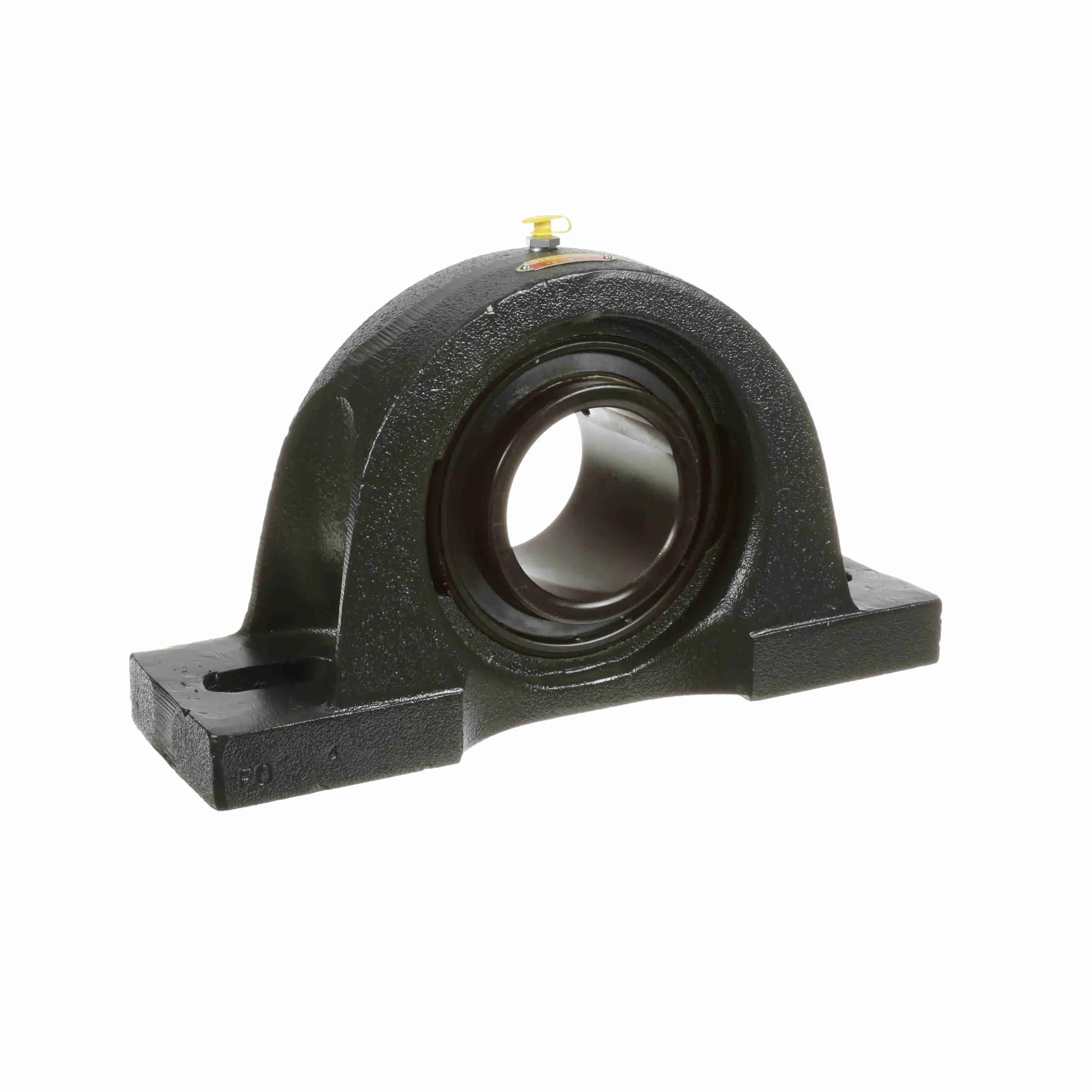

| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 4.391" |
| Insert | 2-38C |
| Length Through Bore | 3.781" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1725 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 8 1/4" |
| Overall Length | 15" |
| Overall Width | 4.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Setscrew Torque | 500 lbs.-in. to 650 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-38 |
| Static Load Rating | 16301 lbs. |
| Vibration Frequency Fundamental Train | 0.0069 cPS |
| Vibration Frequency Inner Ring Defect | 0.0981 cPS |
| Vibration Frequency Outer Ring Defect | 0.0685 cPS |
| Vibration Frequency Roller Spin | 0.0454 cPS |
