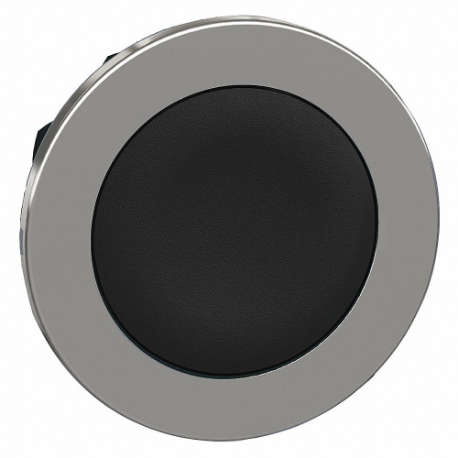

| Item | Non-Illuminated Push Button Operator |
| Action Type | Maintained Push |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Color | Black |
| Features | 500000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance |
| Head Material | Metal |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Type Of Operator | Flush Button |
| Action | Maintained |
| Head/lens Color | Black |
| Maintained Action Release | Push/Push |
| Manufacturer Warranty Length | 18 Months |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1.22" |
| Overall Height | 1 11/25" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Standards | CCC, CE, CLASS I IEC 60536, CSA C22.2 NO.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, REACH FREE OF SVHC, ROHS, TYPE 12 UL 50E, TYPE 13 UL 50E, TYPE 4 UL 50E, TYPE 4X UL 50E, UL 508 |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
ZB6AS834 | Operator | €67.02 | |
 |
9001KR9R05 | Head | - | RFQ
|
 |
ZB5AS84W00 | Head | €121.07 | |
 |
ZB5AP3S | Head | €35.78 | |
 |
ZB4FH2 | Head | €25.38 | |
 |
ZB4FH06 | Head | €24.32 | |
 |
ZB4FH3 | Head | €26.71 |
