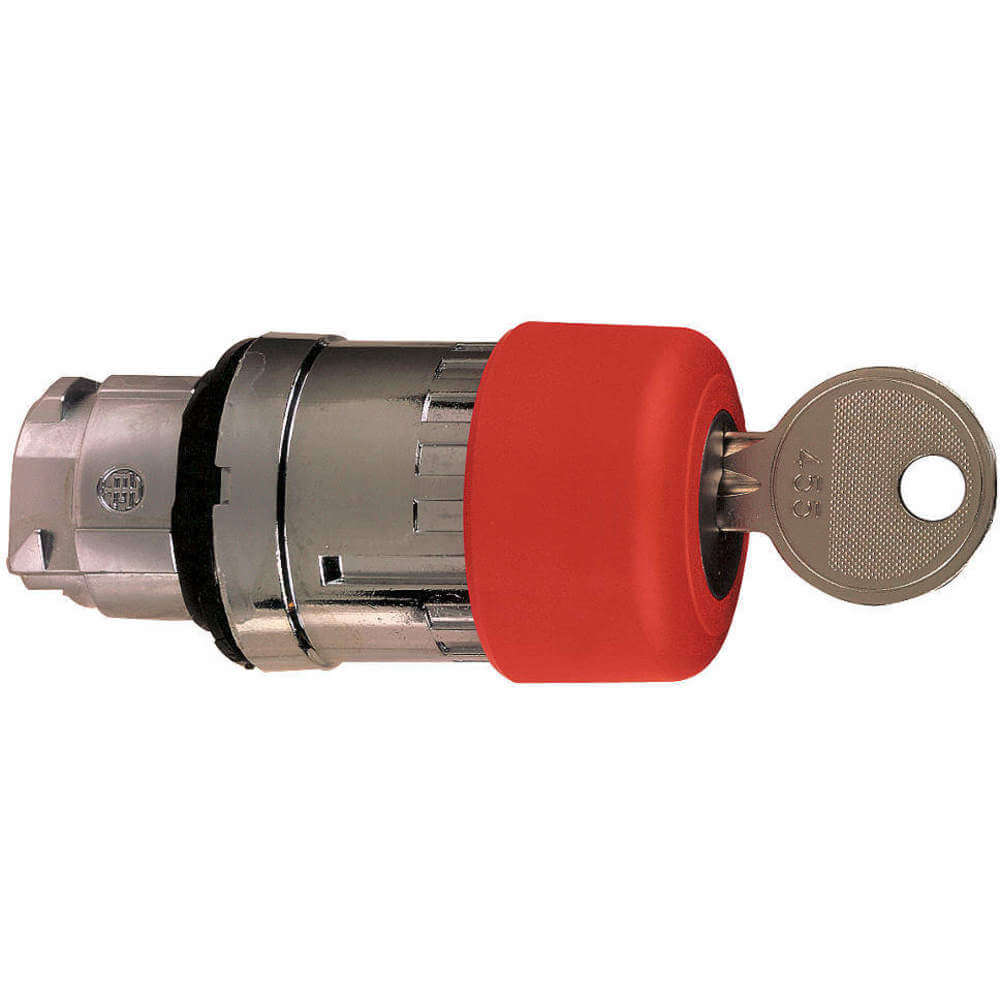

| Item | Push Button Operator |
| Action Type | Key Release |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Die Cast Aluminum |
| Cad Overall Depth | 79 mm |
| Cad Overall Height | 30 mm |
| Cad Overall Width | 30 mm |
| Color | Green |
| Device Presentation | Basic Element |
| Diameter | 30 mm |
| Head Material | Aluminum Zinc Alloy |
| Includes | Ronis 455 Key |
| Key Withdrawal Position | Center |
| Legend | No Legend |
| Mounting Diameter | 22 mm |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Operators | 1 |
| Shape Of Signaling Unit Head | Round |
| Action | Maintained |
| Features | Snap Fit Assembly, Visually Distinct at a Distance |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Maintained Action Release | Key |
| Manufacturer Warranty Length | 18 Months |
| Mushroom Head Diameter | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 3.11" |
| Overall Height | 1.18" |
| Overall Width | 1.18" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Standards | BUREAU VERITAS, CSA C22.2 NO.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH FREE OF SVHC, ROHS, UL 508 |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 6.1 |
| HS code | 8538908060 |
| Country of Origin | CZ |
| Model | Color | Type Of Operator | Price | |
|---|---|---|---|---|
| ZB4BS944 | Red | 40mm Dia. Mushroom | €196.66 | |
| ZB4BS94414 | Red | 40mm Dia. Mushroom | €218.55 | |
| ZB4BS94410 | Red | 40mm Dia. Mushroom | €200.49 | |
| ZB4BS94412 | Red | 40mm Dia. Mushroom | €190.91 | |
| ZB4BS94420 | Red | 40mm Dia. Mushroom | €256.07 |
