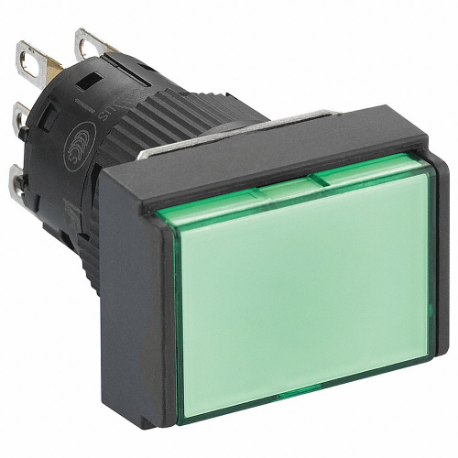

| Item | Push Button |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Green |
| Contact Form | 1 CO |
| Contact Rating | 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC |
| Lamp Module Voltage | 24V DC |
| Lamp Type | LED |
| Lamp Voltage | 24V DC |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Nema Contact Rating Designation | AC-12/AC-13/DC-12/DC-13 |
| Number Of Operators | 1 |
| Terminal Connection | Quick Connect |
| Type Of Operator | Rectangular Flush Button |
| Ac Contact Rating | 0.5A @ 240V, 1A @ 120V |
| Action | Momentary |
| Dc Contact Rating | 0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V |
| Display Qty | 1 |
| Head Material | Plastic |
| Head/lens Color | Green |
| Ip Rating | IP65 |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Voltage - Maximum | 24V DC |
| Manufacturer Warranty Length | 18 Months |
| Mechanical Operating Durability | 1 x 10^6 |
| Nema Enclosure Rating | NEMA 1, NEMA 12 |
| Number Of Indicator Lights | 0 |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | 14°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 250V AC |
| Overall Depth | 1.58" |
| Overall Height | 0.71" |
| Overall Width | 0.94" |
| Panel Mounting Hole Diameter | 16 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6E Series |
| Standards | CCC, CSA C22.2 NO.14, CURUS, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
9001K2L35LRR | Illuminated Push Button | €229.71 | |
 |
XB6DF3B5B | Illuminated Push Button | €57.96 | |
|
XB6DW3B1B | Illuminated Push Button | €89.54 | |
|
XB6DF3B1B | Illuminated Push Button | €90.70 | |
 |
XB6DW4B2B | Illuminated Push Button | €97.12 | |
|
XB6DF4B5B | Illuminated Push Button | €116.90 | |
 |
XB6DW1B1B | Illuminated Push Button | €100.64 |
