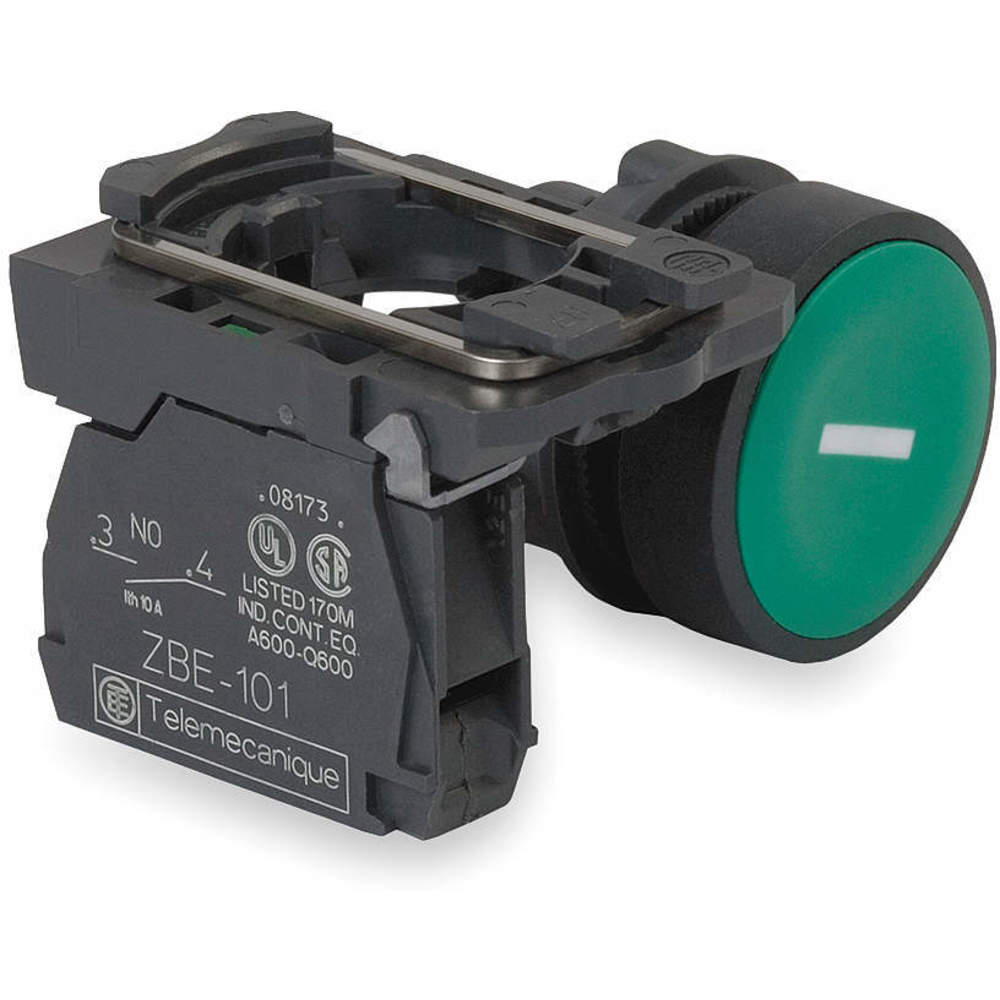

| Item | Non-Illuminated Push Button |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Green |
| Contact Rating | 10A @ 230V AC |
| Device Presentation | Complete Product |
| Fixing Collar Material | Plastic |
| Head Material | Plastic |
| Legend | I |
| Legend/background Color | Green, White |
| Material | Plastic |
| Mounting Diameter | 22 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X |
| Number Of Operators | 1 |
| Positive Opening | Without |
| Shape Of Signaling Unit Head | Round |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Pressure Plate |
| Type Of Operator | Full Guard |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Contact Form | 1NO |
| Dc Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Display Qty | 1 |
| Head/lens Color | Green |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend Background Color | Green |
| Legend Color | White |
| Manufacturer Warranty Length | 18 Months |
| Mechanical Operating Durability | 1 x 10^7 |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 600V AC/DC |
| Overall Depth | 2.05" |
| Overall Height | 1.65" |
| Overall Width | 1.18" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | ZB5/XB5 Series |
| Standards | BUREAU VERITAS, CSA, CSA C22.2 NO.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GERMANISCHER LLOYD (GL), JIS C8201-1, JIS C8201-5-1, LLOYD'S REGISTER, REACH, RINA, ROHS, UL 508, UL LISTED, WEEE |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 5.2 |
| Ship width (cm) | 3 |
| HS code | 8536509031 |
| Country of Origin | FR |
| Product | Model | Bezel | Color | Contact Form | Contact Rating | Head Material | Ip Rating | Legend/background Color | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB4BA61 | Chrome Plated Metal | Blue | 1NO | 10A @ 600 VAC | Metal | 65 | - | Metal | €46.82 | |
 |
XB4BA711237 | - | - | 2NO/1NC | 10A @ 600 VAC | Metal | 66, 69K | White/Black, White/Red, White/Black | - | €154.22 | |
 |
XB4BA731327 | - | - | 2NO/1NC | 10A @ 600 VAC | Metal | 66, 69K | White/Green and White/Red | - | €192.14 | |
 |
XB5AA711237 | - | - | 2NO/1NC | 10A @ 600 VAC | Plastic | 66, 69K | White/Black, White/Red, White/Black | - | €136.74 | |
 |
XB5AA731327 | - | - | 2NO/1NC | 10A @ 600 VAC | Plastic | 66, 69K | White/Green and White/Red | - | €204.52 | |
 |
XB5AA21 | Plastic | Black | 1NO | 10A @ 230 VAC | Plastic | 65 | - | Plastic | €53.06 | |
 |
XB5AA25 | Plastic | Black | 1NO/1NC | 10A @ 230 VAC | Plastic | 65 | - | Plastic | €78.50 |
