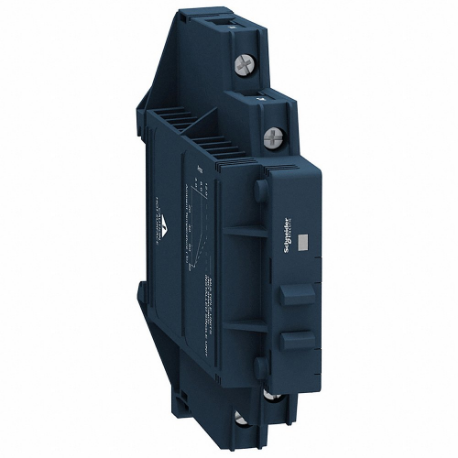

| Item | Solid State Relay |
| Body Depth | 3.29" |
| Body Height | 3.55" |
| Body Width | 0.7" |
| Case Color | Black |
| Current Type | AC |
| Electrical Connection | Screw |
| Electrical Phase | 1 |
| Finger Safe | Yes |
| Heat Sink | Integral |
| Hp @ 240v | 333/1000 hp |
| Includes | Single Channel |
| Input Current | 2.5-3.5 mA |
| Input Voltage | 200-265V AC |
| Ip Rating | IP20 |
| Max. Operating Temp. | 176°F |
| Maximum Capacitance | 10 pF |
| Maximum Output Current With Heat Sink | 12A |
| Maximum Output Current Without Heat Sink | 12A |
| Mfr. Series | Harmony (TM) Ssm Relays Series |
| Min. Operating Temp. | -22°F |
| Output Switching Mode | Zero Crossing |
| Output Voltage Range | 24-280V AC |
| Power Factor | 0.5 |
| Relay Mounting Style | Din Rail |
| Response Time | 30 ms |
| Status Indicator | Green LED Indicator |
| Switch Component Type | Silicon Controlled Rectifier |
| Switch Configuration | Form A |
| Voltage/current Type | AC Output |
| Electrical Connection Type | Screw |
| Horsepower @ 240v Ac | 1/3 hp |
| Insulation Resistance | 1000 m ohms |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -22°F |
| Output Voltage | 24-280V AC |
| Series | Harmony(TM) SSM Relays |
| Standards | CE CERTIFIED, CSA CERTIFIED, IEC 60950-1, IEC 61000, IEC 62314, UL LISTED |
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 8.36 |
| Ship width (cm) | 1.78 |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
 |
SSR210DIN-DC22 | - | RFQ
|
 |
SSR610DIN-AC22 | - | RFQ
|
 |
SSR210DIN-AC22 | - | RFQ
|
 |
SSR610DIN-DC22 | - | RFQ
|
 |
SSR630DIN-AC22 | - | RFQ
|
 |
SSR630DIN-DC22 | €152.84 | |
 |
SSR230DIN-AC22 | - | RFQ
|
