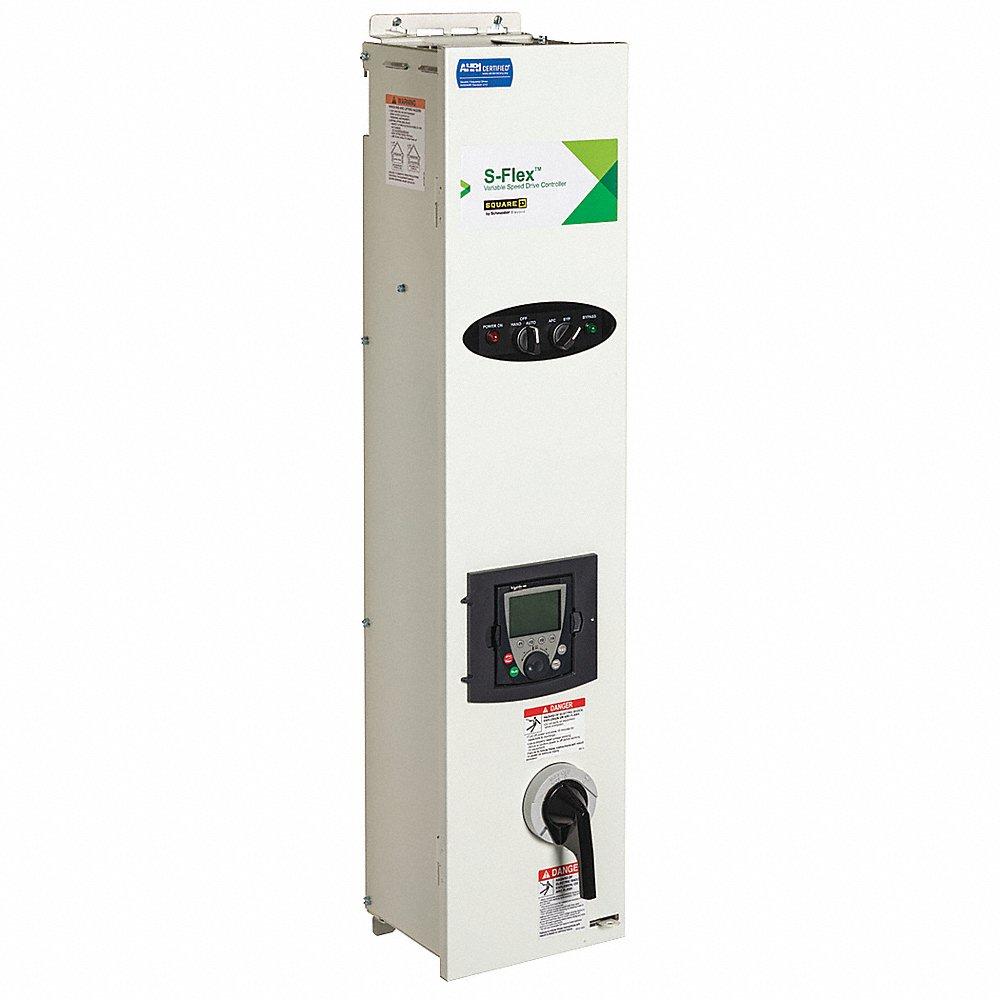

SCHNEIDER ELECTRIC SFD212JG2YD07 Variable Frequency Drive, 208VAC, 15 hp Max Output Power, NEMA 1, With Bypass
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0.1 sec. to 999.9 sec. |
| Adjustable Deceleration Time | 0.1 sec. to 999.9 sec. |
| Application | Commercial Office Buildings, Residential High Rise And Mixed Use Buildings, Schools And Campus Environments |
| Bypass Included | Yes |
| Control Type | Keypad, Remote |
| Display Type | LCD |
| Displays | Integrated, LCD |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Totally Enclosed |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Voltage | 208V AC |
| Max. Output Amps | 48.3A |
| No. Of Inputs | 2 |
| No. Of Output | 1 |
| Output Frequency | 0.5-200 Hz |
| Output Phase | 3 |
| Output Power | 15 hp |
| Output Voltage | 208V AC |
| Overall Depth | 11" |
| Overall Height | 45 1/8" |
| Overall Width | 12 1/2" |
| Protection | Circuit Breaker |
| Starting Torque | 110% |
| Accepts Input Control Signal | Remote Contact |
| Control Method | Keypad, Remote |
| Enclosure | Totally Enclosed |
| Input Phase Ac | 3 |
| Maximum Output Current | 48.3A |
| Maximum Output Power | 15 hp |
| Number Of Inputs | (2) Analog |
| Number Of Outputs | (1) Analog |
| Output Frequency Range | 0.5-200 Hz |
| Output Phase Ac | 3 |
| Standards | UL TYPE 1, ROHS |
| Torque @ 1 Hz | 110% |
| With Bypass / No Bypass | With Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Ship weight (kg) | 75.15 |
| Ship height (cm) | 114.62 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 31.75 |
| Country of Origin | ID |
| Product | Model | Display Type | Enclosure | Input Voltage | Max. HP | Max. Output Amps | Number of Outputs | Output Current | Output Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFD212MG4YB07D07 | LCD or Integrated | NEMA 1 | 460 VAC | 30 | 40 | - | - | 460 VAC | €7,229.75 | RFQ
|
|
SFD212NG4YB07D07 | LCD or Integrated | NEMA 1 | 460 VAC | 40 | 52 | - | - | 460 VAC | €8,379.10 | RFQ
|
 |
ATV320D11M3C | LED | Open | - | - | - | 1 Analog, 3 Discrete | 54A | - | €2,256.48 | |
 |
ATV320D15M3C | LED | Open | - | - | - | 1 Analog, 3 Discrete | 66A | - | €2,826.37 | |
 |
ATV320D15N4B | LED | Open | - | - | - | 1 Analog, 3 Discrete | 33A | - | €3,128.82 | |
 |
ATV320U02M2C | LED | Open | - | - | - | 1 Analog, 3 Discrete | 1.5A | - | €650.94 | |
|
ATV320U02M3C | LED | Open | - | - | - | 1 Analog, 3 Discrete | 1.5A | - | €502.31 |
