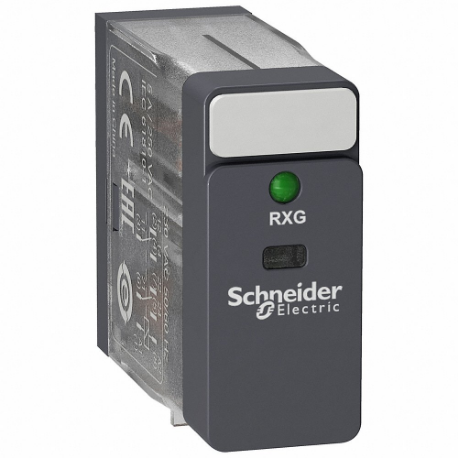

| Item | Plug-In Relay |
| Ac Contact Rating | 5A @ 250V |
| Amps Rating | 5A |
| Base Shape | Square |
| Base Type - Plug In Relay | Square |
| Body Depth | 1 9/25" , 1.14" |
| Body Height | 1 2/5" , 1.14" |
| Body Width | 0.51" |
| Coil Resistance | 6300 ohms |
| Coil Voltage | 120V AC |
| Contact Form | DPDT |
| Cover Color | Standard |
| Dc Contact Rating | 5A @ 30V |
| Device Presentation | Complete Product |
| Dielectric Strength | 1000/3000/5000V AC |
| Electrical Connection | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | Insulation Class F |
| Flat Pin Width | 0.09" |
| For Use With | Hard-Wired Logic Automated Systems |
| Insulation Resistance | 1000 M ohms |
| Maximum Switching Capacity | 1250 VA |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | HARMONY RXG Series |
| Min. Switching Amps | 10 mA |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Operating Time | 20 ms |
| Overall Depth | 1.59" |
| Pin Shape | Flat |
| Power Consumption | 0.82 VA |
| Power Consumption - Relay | 0.82 VA |
| Push-to-test Button | No , No Test Button |
| Push-to-test Method | No Button |
| Relative Humidity | 10% to 85% |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset Time | 20 ms |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Socket Code | K |
| Status Indicator | LED Indicatormechanical Flag |
| Test Levels | Level A Group Mounting , With |
| Contact Rating (ac) | 5A @ 250V |
| Contact Rating (dc) | 5A @ 30V |
| Current Rating | 5A |
| Electrical Connection Type | Tab |
| Number Of Pins/terminals | 8 |
| Series | Harmony RXG Series |
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 3.45 |
| Ship width (cm) | 1.3 |
| Country of Origin | CN |
| Product | Model | Ac Contact Rating | Coil Va Rating | Coil Volts | Contact Form | Dc Contact Rating | Number Of Pins | Number Of Poles | Push To Test | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
782XDXH10-240A | 3A @ 240V | 1.2 | 240 VAC | 4PDT | 3A @ 28V | 14 | 4 | No | €114.74 | |
|
782XDXH10-24D | 3A @ 240V | 1.2 | 24 VDC | 4PDT | 3A @ 28V | 14 | 4 | No | €137.98 | |
 |
783XCXM4L-24A | 15A @ 120V, 12A @ 277V | 1.5 | 24 VAC | 3PDT | 12A @ 28V | 11 | 3 | Lockable | €27.52 | |
 |
784XDXC-120A | 15A @ 120V, 12A @ 277V | 1.5 | 120 VAC | 4PDT | 12A @ 28V | 14 | 4 | No | €27.10 | |
 |
RXG13F7 | - | - | - | - | - | - | - | - | €15.64 |
