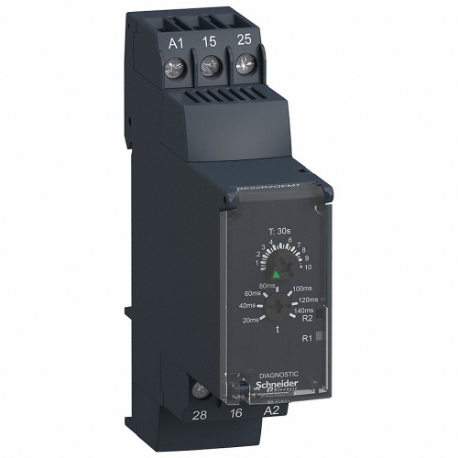

SCHNEIDER ELECTRIC RE22R2QEMT Time Delay Relay, DIN-Rail Mounted, 415VAC, 8 A, 6 Pins/Terminals, 0.3 sec to 30 sec

Item: CU2EEKModel: RE22R2QEMTCross Ref: 55WM66

See variants (16)

In Stock

Get it by Tuesday, Jun 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€77.98 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Ac Contact Rating	8A @ 250V
Adjustment Method	Diagnostic Button, Rotary Dip Switch
Amps Rating	8A
Base Shape	Square
Body Depth	2.87" , 3.03"
Body Height	3.54"
Body Width	0.89"
Coil Volts	415V AC
Contact Form	DPDT
Dc Contact Rating	8A @ 24V
Delay Function	Star-Delta
Electrical Connection	Screw Terminal
Electrical Connection Type	Screw
Electrical Operating Durability	100000
Environmental Protection	Sealed
Ip Rating	IP20, IP40, IP50
Max. Operating Temp.	140°F
Max. Switching Voltage	250V AC
Max. Time Setting	30 sec.
Max. Time Setting - Timer	30 sec.
Mechanical Operating Durability	10000000
Min. Operating Temp.	-4°F
Min. Time Setting	0.3 sec.
Minimum Time Setting	0.3 sec.
No. Of Pins	6
No. Of Pins - Relay	6
Number Of Delay Functions	2
Number Of Pins/terminals	6
Operating Time Accuracy	-0.5% To +0.5%
Overall Depth	3.54"
Overall Height	3.54"
Power Consumption	15 VA
Relay Mounting Style	Din Rail
Sealing	Sealed
Timing Relay Functionality	Off Delay, On Delay
Coil Voltage	415V AC
Contact Rating (ac)	8A @ 250V
Contact Rating (dc)	8A @ 24V
Current Rating	8A
Maximum Operating Temperature	140°F
Maximum Switching Voltage	250V AC
Maximum Time Setting	30 sec.
Minimum Operating Temperature	-4°F
Standards	IEC 61812-1, UL 508
