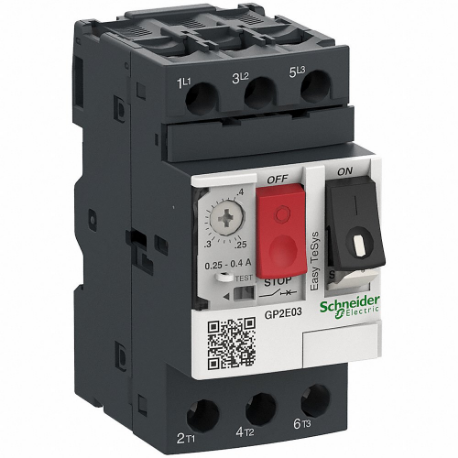

| Item | Manual Motor Switch |
| Amps Rating | 0.4A |
| Depth | 3.09" |
| Height | 3 1/2" |
| Max. Overload Relay Amps Setting | 0.4A |
| Max. Voltage | 690V AC |
| Mounting Hole Distance | 1.97" |
| Mounting Hole Width | 1.38" |
| Nema Size | Not Applicable |
| Number Of Poles | 3 |
| Operator | Push Button |
| Overall Depth | 3.09" |
| Overall Height | 3 1/2" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Phase Loss Sensitivity | Yes |
| Pilot Light | No |
| Resistance Properties | Fire Resistant |
| Starter Type | Manual |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 1.77" |
| Electrical Operating Durability | 100000 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 0.4A |
| Maximum Operating Temperature | 140°F |
| Maximum Overload Relay Current Setting | 0.4A |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 100000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 0.25A |
| Mounting Hole Distance - Height | 1.97" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Style | DIN Rail |
| Nema Enclosure Rating | No Enclosure |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Series | TeSys Easy |
| Standards | CUL, EN/IEC 60947-2, EN/IEC 60947-4-1, ROHS, UL 60947-4-1 |
| Starter Style | IEC |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | 10 |
| Wire Termination Type | Screw Clamps |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 7.85 |
| Ship width (cm) | 4.5 |
| Country of Origin | TH |
