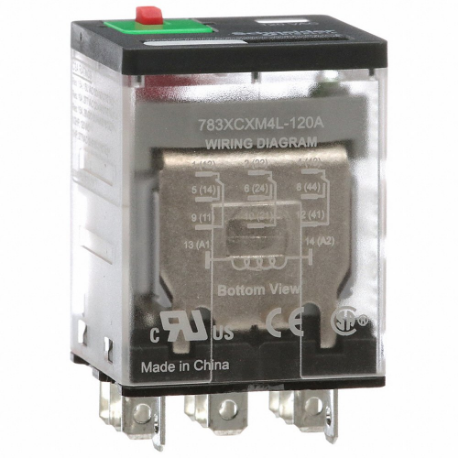

| Item | General Purpose Relay |
| Ac Contact Rating | 7.55A @ 250V (NC)10A @ 151/277V15A @ 120 To 277/120/150/250V |
| Amps Rating | 15A |
| Coil Voltage | 120V AC |
| Contact Form | 3PDT |
| Dc Contact Rating | 7.55A @ 28V (Nc), 15A @ 28V (No) |
| Dielectric Strength | 1500/2000V AC |
| Electrical Connection | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1/2 hp |
| Hp @ 240v | 3/4 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 783 Series |
| Motor Rating | Yes |
| Number Of Pins | 11 |
| Push-to-test Button | Lockable Push Test Button |
| Relay Mounting Style | Socket |
| Socket Code | C |
| Status Indicator | LED Indicatormechanical Flag |
| Contact Rating (ac) | 7.55A @ 250V (NC), 10A @ 151/277V, 15A @ 120 to 277/120/150/250V |
| Contact Rating (dc) | 7.55A @ 28V (NC), 15A @ 28V (NO) |
| Current Rating | 15A |
| Electrical Connection Type | Tab |
| Horsepower @ 120v Ac | 1/2 hp |
| Horsepower @ 240v Ac | 3/4 hp |
| Motor Rated | Yes |
| Number Of Pins/terminals | 11 |
| Series | 783 Series |
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 3.91 |
| Ship width (cm) | 3.05 |
| Country of Origin | CN |
| Product | Model | Ac Contact Rating | Body Height | Body Width | Coil Volts | Contact Form | Dc Contact Rating | Number Of Pins | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
782XBXC-120A | 15A @ 120V, 12A @ 277V | 1.4" | 0.83" | 120 VAC | DPDT | 12A @ 28V | 8 | 1.64" | €16.31 | |
|
782XBXC-24D | 15A @ 120V, 12A @ 277V | 1.4" | 0.83" | 24 VDC | DPDT | 12A @ 28V | 8 | 1.64" | €16.31 | |
 |
782XBXM4L-240A | - | 1.54" | 0.83" | 240V AC | - | - | 8 | 1.78" | €22.28 | |
 |
782XBXM4L-24A | 15A @ 277V | 1.54" | 0.83" | 24 VAC | DPDT | 15A @ 28V | 8 | 1.78" | €22.28 | |
 |
783XCXM4L-24D | 15A @ 120V, 12A @ 277V | 1.6" | 1.2" | 24 VDC | 3PDT | 12A @ 28V | 11 | 1.85" | €27.52 | |
 |
784XDXC-12D | 15A @ 120V, 12A @ 277V | 1.4" | 1.6" | 12 VDC | 4PDT | 12A @ 28V | 14 | 1.64" | €25.36 | |
 |
8501KPR12V36 | - | - | - | - | - | - | - | - | - | RFQ
|
