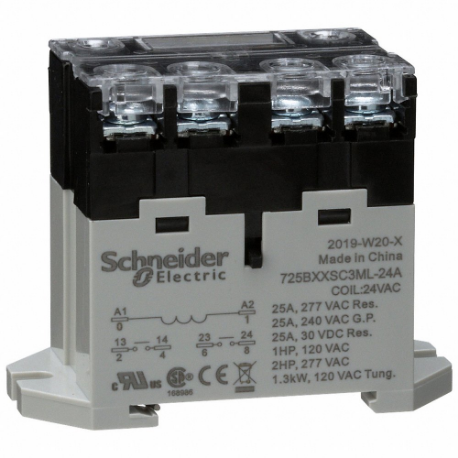

| Item | Enclosed Power Relay |
| Ac Contact Rating | 25A @ 240/277V |
| Base Shape | Square |
| Body Depth | 1.3" |
| Body Height | 1.3" , 2.09" |
| Body Width | 2.67" |
| Coil Resistance | 275 ohms |
| Coil Voltage | 24V AC |
| Contacts Material | Silver Alloy Contacts |
| Control Circuit Voltage | 2.5 VA , 24V , Harmony Electromechanical Relays |
| Current Rating | 25A |
| Dc Contact Rating | 25A @ 28/30V |
| Dielectric Strength | 2000V AC/4000V |
| Electrical Connection | Screw |
| Electrical Connection - Power Relay | Screw |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | Harmony 725 Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rating | Yes |
| Number Of Pins | 6 |
| Number Of Pins - Relay | 6 |
| Number Of Pins/terminals | 6 |
| Number Of Poles | 2 |
| Overall Depth | 2 3/25" |
| Overall Height | 2.09" |
| Power Consumption | 2.5 VA |
| Power Consumption - Relay | 2.5 VA |
| Push-to-test Button | Manual Push Test Button |
| Push-to-test Method | Test Button |
| Relay Mounting Style | Din Rail, Surface |
| Response Time | 30 ms |
| Status Indicator | LED Indicator |
| Contact Form | DPST-NO |
| Contact Rating (ac) | 25A @ 240/277V |
| Contact Rating (dc) | 25A @ 28/30V |
| Electrical Connection Type | Screw |
| Horsepower @ 120v Ac | 1 hp |
| Horsepower @ 240v Ac | 2 hp |
| Motor Rated | Yes |
| Series | Harmony 725 Power Series |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 6.78 |
| Country of Origin | CN |
| Model | Coil Volts | Contact Amp Rating (resistive) | Contact Form | Pins | Price | |
|---|---|---|---|---|---|---|
| RPF2AB7 | 24 VAC | 30A @ 277 VAC | DPST-NO | 6 | €26.93 | |
| RPF2AF7 | 120 VAC | 30A @ 277 VAC | DPST-NO | 6 | €26.93 | |
| RPF2AP7 | 230 VAC | 30A @ 277 VAC | DPST-NO | 6 | €26.93 | |
| RPF2BJD | 12 VDC | 30A @ 277 VAC (NO), 3A @ 277 VAC (NC) | DPDT | 8 | €28.84 | |
| RPF2BBD | 24 VDC | 30A @ 277 VAC (NO), 3A @ 277 VAC (NC) | DPDT | 8 | €25.45 | |
| RPF2BB7 | 24 VAC | 30A @ 277 VAC (NO), 3A @ 277 VAC (NC) | DPDT | 8 | €28.84 | |
| RPF2BF7 | 120 VAC | 30A @ 277 VAC (NO), 3A @ 277 VAC (NC) | DPDT | 8 | €28.84 |
