Get it by Wednesday, Jun 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

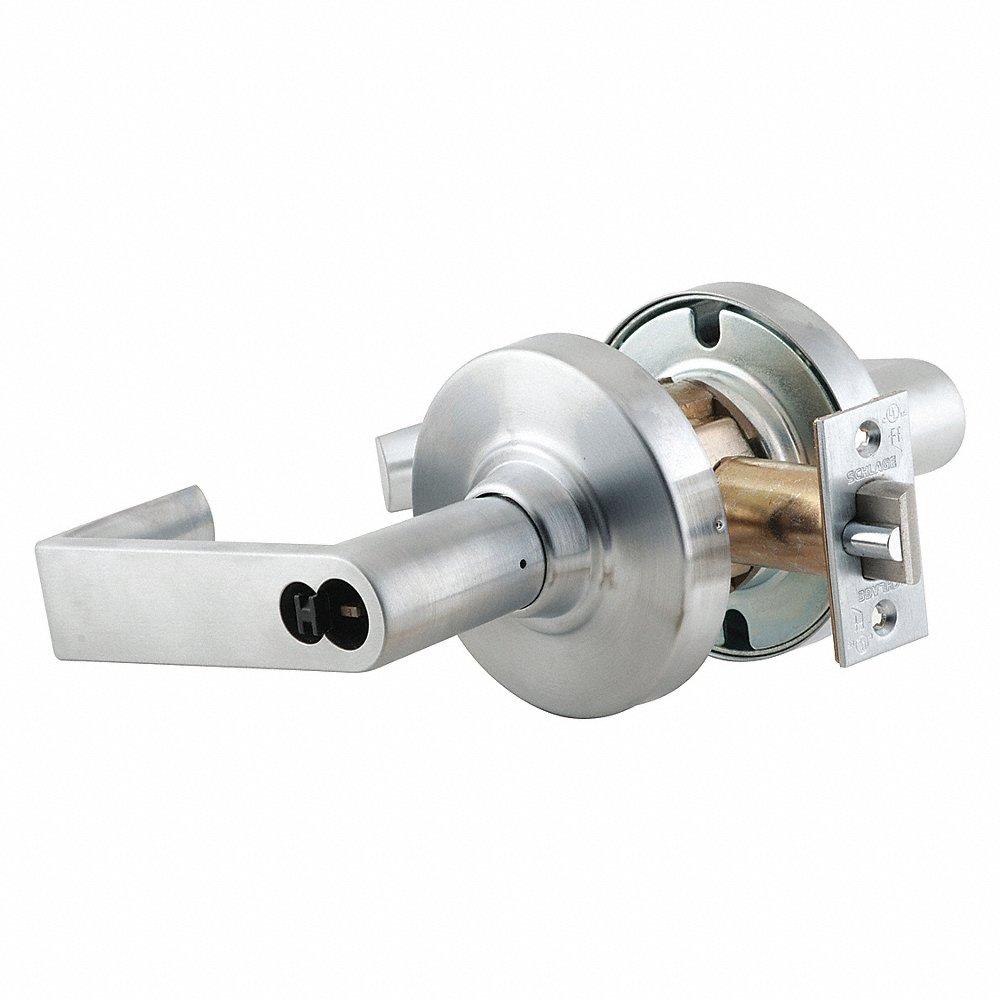

| Item | Electronic Lock |
| Ada Compliant | Yes |
| Backset | 2 3/4" |
| Cylinder Core Type | LFIC Not Included |
| Electrical/mechanical | Electrical |
| Features | Dual Volt |
| Finish | Satin Chrome |
| For Use With | Access Control, Power Transfer |
| Function | Fail Secure |
| Handle Material | Cast Zinc |
| Handle Type | Lever |
| Includes | Latch, Strike |
| Key Type | Keys Not Included |
| Keyway Type | None |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Heavy Duty |
| Mortise / Cylindrical | Cylindrical |
| Number Of Keys | 0 |
| Pins | 6 to 7 |
| Required Door Thickness | 1 5/8" to 2 1/8" |
| Strike Dim. | 4 7/8" x 1 1/4" |
| Strike Type | ANSI |
| Style | ND Rhodes |
| Visual Indicator Message | No Message |
| Voltage | 12/24V DC |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Storeroom |
| Bolt Type | Dead Latch |
| Door Thickness - Maximum | 2 1/8" |
| Door Thickness - Minimum | 1 5/8" |
| Failure Mode | Fail Secure |
| Fire Rating | 3 hrs. |
| General Lockset Function | Storeroom Lever Locksets |
| Hand Orientation | Non Handed |
| Includes Core | Core Not Included |
| Knob/handle Material | Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Lock Assembly Type | Cylindrical |
| Lockset Style | ND Rhodes |
| Lockset Type | Electrical |
| Mounting Style | Screw In |
| Number Of Pins | 6 to 7 |
| Outside Locking Access | Keyway |
| Performance Duty Rating | 1 |
| Standards | ANSI/BHMA ANSI A156.2-2017, ASTM E330, BAA/TAA, CALIFORNIA FIRE CODE, CAN/ULC S104, E1886, E1996, FF-H-106C SERIES 161, ICC COMPLIES WITH ICC A117.1-2017, MIAMI DADE (TAS 201, 202, 203), TDI (ASTM E330, E1886, E1996), UL 437 |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Ul Fire Rating | UL10C |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
09-138 SL1 630 P | Antiligature Lever | €2,322.89 | |
 |
09-138 SL1 630 BD | Antiligature Lever | €2,123.48 | |
|
L9465P SL1 630 | Door Lever Lockset | €2,531.72 | |
|
L9080J SL1 630 | Door Lever Lockset | €2,408.55 | |
 |
L9010 SL1 630 | Door Lever Lockset | €2,217.32 | |
|
L9070J SL1 630 | Door Lever Lockset | €2,439.16 | |
|
L9465BD SL1 630 | Door Lever Lockset | €2,515.75 |
