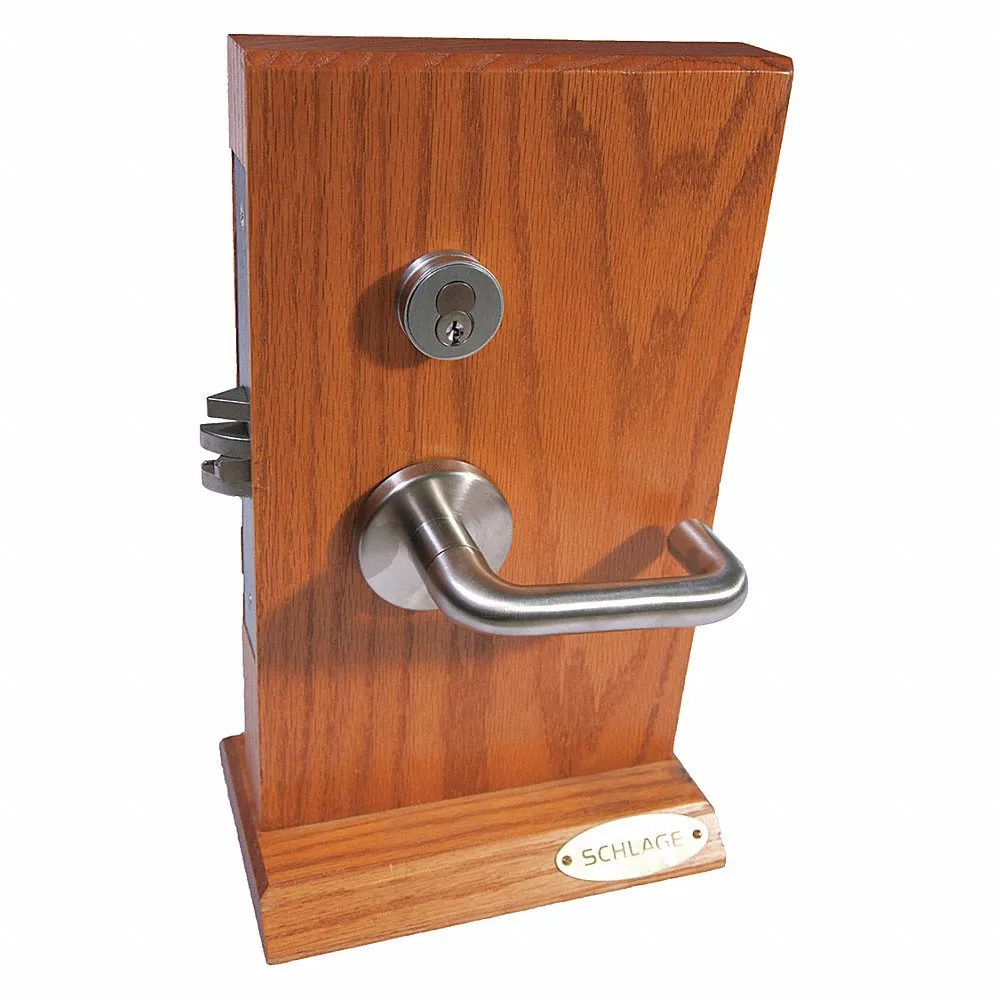

| Item | Mortise Lockset |
| Ada Compliant | Yes |
| Backset | 2 3/4" |
| Cylinder Core Type | Interchangeable Core |
| Electrical/mechanical | Yes |
| Finish | Satin Stainless Steel |
| For Use With | Commercial Doors |
| Function | Storeroom |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Key Material | Brass |
| Key Type | Different |
| Keyway Type | Everest C123 |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lockset Performance Strength | Heavy Duty |
| Mortise / Cylindrical | Mortise |
| Number Of Keys | 2 |
| Pins | 6 |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Type | ANSI Curved Lip |
| Style | 03B |
| Visual Indicator Message | No Message |
| Voltage | 12/24V DC |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Storeroom |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Failure Mode | Fail Secure |
| Features | Anti-Saw Pin In Bolt, Breakaway Spindle, Security Blocking Hub, Two Piece Anti-Friction Tongue In Latch Bolt |
| Fire Rating | 3 hrs. |
| General Lockset Function | Storeroom Lever Locksets |
| Hand Orientation | Non Handed |
| Includes | (2) Escutcheons, (2) Knobs, (5) Roses |
| Knob/handle Material | Cast Stainless Steel, Forged Brass |
| Ligature Resistance | Not Ligature Resistant |
| Lock Assembly Type | Mortise |
| Lockset Handle Type | Lever |
| Lockset Style | 03B |
| Lockset Type | Electrical |
| Number Of Pins | 6 |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Standards | ANSI/BHMA A156.13-2017, BAA, CLASS III, ICC A117.1, NOA, UL 437 |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Ul Fire Rating | UL10C |
| Ship weight (kg) | 3.6 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
09-138 SL1 630 P | Antiligature Lever | €2,322.89 | |
 |
09-138 SL1 630 BD | Antiligature Lever | €2,123.48 | |
|
L9465P SL1 630 | Door Lever Lockset | €2,531.72 | |
|
L9080J SL1 630 | Door Lever Lockset | €2,408.55 | |
 |
L9010 SL1 630 | Door Lever Lockset | €2,217.32 | |
|
L9070J SL1 630 | Door Lever Lockset | €2,439.16 | |
|
L9465BD SL1 630 | Door Lever Lockset | €2,515.75 |
