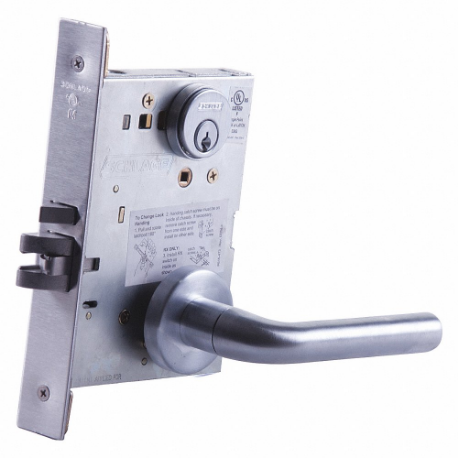

| Item | Door Lever Lockset |
| Ada Compliant | No |
| Electrical/mechanical | Mechanical |
| Grade | Not Graded |
| Handle Type | Lever |
| Ligature Resistant | No |
| Lockset Fire Rating | Not Rated |
| Mortise / Cylindrical | Mortise |
| Visual Indicator Message | No Message |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Entrance |
| Backset | 2 3/4" |
| Bolt Type | Dead Latch |
| Cylinder Core Type | Conventional Core Cylinder |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Failure Mode | Fail Secure |
| Features | Anti-Saw Pin In Bolt, Breakaway Spindle, Security Blocking Hub, Two Piece Anti-Friction Tongue In Latch Bolt |
| Finish | Satin Chromium Plated |
| Fire Rating | 3 hrs. |
| General Lockset Function | Office Lever Locksets |
| Hand Orientation | Non Handed |
| Includes | Dust Box |
| Knob/handle Material | Cast Stainless Steel, Forged Brass |
| Ligature Resistance | Not Ligature Resistant |
| Location Type | Commercial |
| Lock Assembly Type | Mortise |
| Lockset Function Ansi Code | F04 |
| Lockset Handle Type | Lever |
| Lockset Type | Mechanical |
| Mounting Style | Screw In |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Standards | ANSI/BHMA A156.13-2017, BAA/TAA, CAN/ULC S104, COMPLIES WITH ICC A117.1, MIAMI-DADE NOA AND FLORIDA BUILDING COMMISSION LISTINGS, TEXAS DEPARTMENT OF INSURANCE (TDI), TITLE 19, CALIFORNIA STATE FIRE MARSHAL STANDARD), UL 437 |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Ul Fire Rating | UL10C |
| Ship weight (kg) | 3.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
09-138 SL1 630 P | Antiligature Lever | €2,322.89 | |
 |
09-138 SL1 630 BD | Antiligature Lever | €2,123.48 | |
|
L9465P SL1 630 | Door Lever Lockset | €2,531.72 | |
|
L9080J SL1 630 | Door Lever Lockset | €2,408.55 | |
 |
L9010 SL1 630 | Door Lever Lockset | €2,217.32 | |
|
L9070J SL1 630 | Door Lever Lockset | €2,439.16 | |
|
L9465BD SL1 630 | Door Lever Lockset | €2,515.75 |
