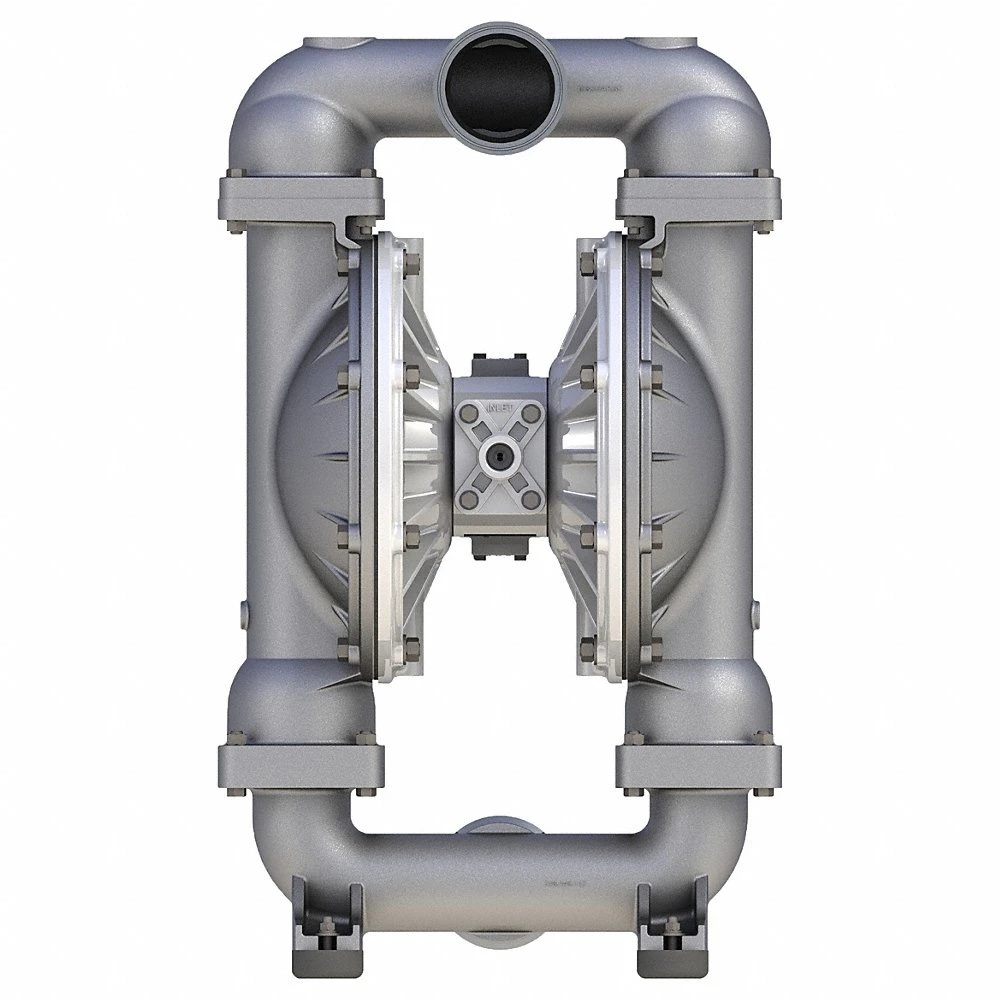

| Item | Double Diaphragm Pump |
| Air Consumption | 140 SCFM |
| Air Consumption (maximum) | 140 SCFM |
| Air Intake Connection Size | 3/4" |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 4" |
| Connection Type | Tri Clamp |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Feet Of Head (maximum) | 289 ft. |
| Flow Rate (maximum) | 285 GPM |
| Flow Rate @ 100 Psi | 260 GPM |
| Flow Rate @ 20 Psi | 170 GPM |
| Flow Rate @ 40 Psi | 220 GPM |
| Flow Rate @ 60 Psi | 240 GPM |
| Flow Rate @ 80 Psi | 260 GPM |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Max. Flow Rate | 285 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 275°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 0.38" |
| Media Discharge Connection Size | 4" |
| Media Discharge Location | Top |
| Media Intake Connection Size | 4" |
| Media Intake Location | Bottom |
| Mounting Hardware Material | Stainless Steel |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Overall Height | 33.3" |
| Overall Length | 19 3/5" |
| Overall Width | 16.7" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Series | T30 Series |
| Solid Diameter (maximum) | 0.38" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Air Inlet | 3/4" FNPT |
| Discharge Port | 4" Tri-Clamp |
| Discharge Port Configuration | Top |
| Fluid Connection Size | 4" |
| Fluid Connection Type | Tri-Clamp |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 125 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Media Temperature | 275°F |
| Media Discharge Connection Type | Tri Clamp |
| Media Intake Connection Type | Tri Clamp |
| Priming | Self Priming |
| Series Family | T |
| Standards | CE CERTIFIED, FDA COMPLIANT, ISO, EC 1935 |
| Suction Port | 4" Tri Clamp |
| Suction Port Configuration | Bottom |
