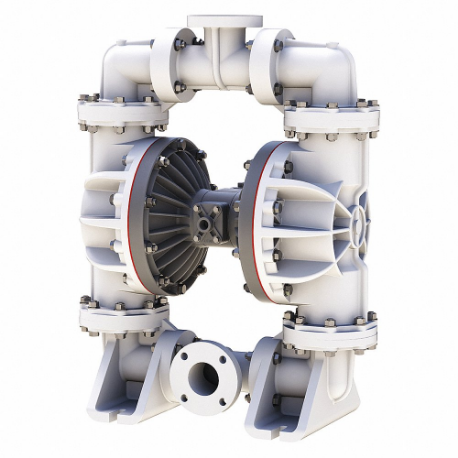

| Item | Double Diaphragm Pump |
| Air Consumption | 150 SCFM |
| Air Consumption (maximum) | 150 SCFM |
| Air Intake Connection Size | 3/4" |
| Air Intake Connection Type | Flange |
| Air Intake Pressure (maximum) | 100 psi |
| Center Section Material | Polypropylene |
| Check Seat Material | Polypropylene |
| Connection Size | 3" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 280 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 276.1 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 164.3 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 214.6 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 242.2 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 260.5 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Inlet Size | 3/4" |
| Inlet Type | Flanged |
| Inlet/outlet Size | 3" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange , Flanged |
| Max. Dia. Solids | 3/4" |
| Max. Flow Rate | 280 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 3/4" |
| Media Discharge Connection Size | 3" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 3" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Polypropylene |
| Operating Pressure (maximum) | 100 psi |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Solid Diameter (maximum) | 3/4" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
| Air Inlet | 3/4" Flange |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Fluid Discharge Connection | 3" Flange |
| Fluid Intake Connection | 3" Flange |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 231 ft. |
| Max. Media Temperature | 180°F |
| Min. Media Temperature | -40°F |
| Priming | Self Priming |
| Series Family | S30 |
| Standards | ABS TYPE APPROVED, CE CERTIFIED, EAC, ISO |
