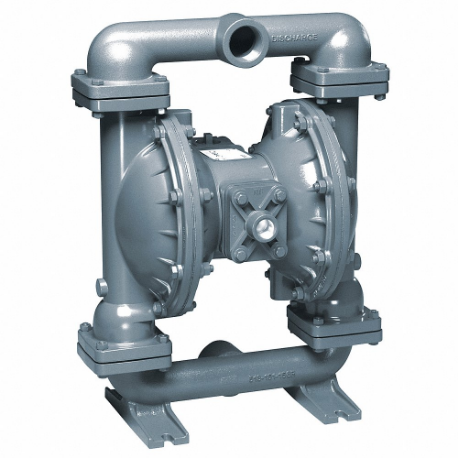

| Item | Double Diaphragm Pump |
| Air Intake Connection Size | 1 1/2" |
| Body Material | Stainless Steel |
| Check Seat Material | Polyethylene |
| Connection Size | 1 1/2" |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate (maximum) | 106 GPM |
| Flow Rate @ 10 Psi | 41 GPM |
| Flow Rate @ 100 Psi | Not Applicable |
| Flow Rate @ 15 Psi | 30 GPM |
| Flow Rate @ 20 Psi | 50 GPM |
| Flow Rate @ 30 Psi | 32 GPM |
| Flow Rate @ 40 Psi | 42 GPM |
| Flow Rate @ 50 Psi | 29 GPM |
| Flow Rate @ 60 Psi | 38 GPM |
| Flow Rate @ 70 Psi | 25 GPM |
| Flow Rate @ 80 Psi | 33 GPM |
| Flow Rate @ 90 Psi | 20 GPM |
| Fluid Connection Inlet Type | BSP |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 1 1/2" |
| Inlet Type | NPT |
| Inlet/outlet Size | 1 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Max. Dia. Solids | 1/4" |
| Max. Flow Rate | 106 GPM |
| Max. Media Temp. | 275°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 1 1/2" |
| Media Intake Connection Size | 1 1/2" |
| Min. Media Temp. | 40°F |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Outlet Type | NPT |
| Overall Height | 24 4/5" |
| Overall Length | 11 4/5" |
| Overall Width | 11 1/5" |
| Power Source | Air |
| Pump Operation Type | Air |
| Solid Diameter (maximum) | 1/4" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Air Inlet | 1 1/2" NPT |
| Fluid Discharge Connection | 1 1/2" NPT |
| Fluid Intake Connection | 1 1/2" BSP |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 125 psi |
| Max. Media Temperature | 275°F |
| Min. Media Temperature | 40°F |
| Series Family | S15 |
| Standards | ABS TYPE APPROVED, CE CERTIFIED, EAC, ISO |
