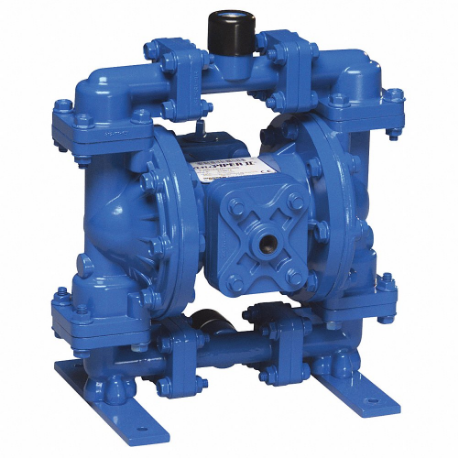

| Item | Double Diaphragm Pump |
| Air Consumption | 20 SCFM |
| Air Consumption (maximum) | 20 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Pressure (maximum) | 125 psi |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | Polyethylene |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Water |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Feet Of Head (maximum) | 289 ft. |
| Flow Rate (maximum) | 15 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 13.4 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 4.2 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 9.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 11.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 12.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/4" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Dia. Solids | 1/8" |
| Max. Flow Rate | 15 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.13" |
| Media Discharge Connection Size | 1/2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1/2" |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 11 1/2" |
| Overall Length | 7.1" |
| Overall Width | 10.3" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self-priming Dry | 13 ft. |
| Self-priming Wet | 13 ft. |
| Solid Diameter (maximum) | 0.13" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
| Air Inlet | 1/4" FNPT |
| Fluid Discharge Connection | 1/2" NPT |
| Fluid Intake Connection | 1/2" NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Discharge Pressure | 100 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Media Temperature | 180°F |
| Priming | Self Priming |
| Standards | ATEX CERTIFIED, CE CERTIFIED, EAC |
