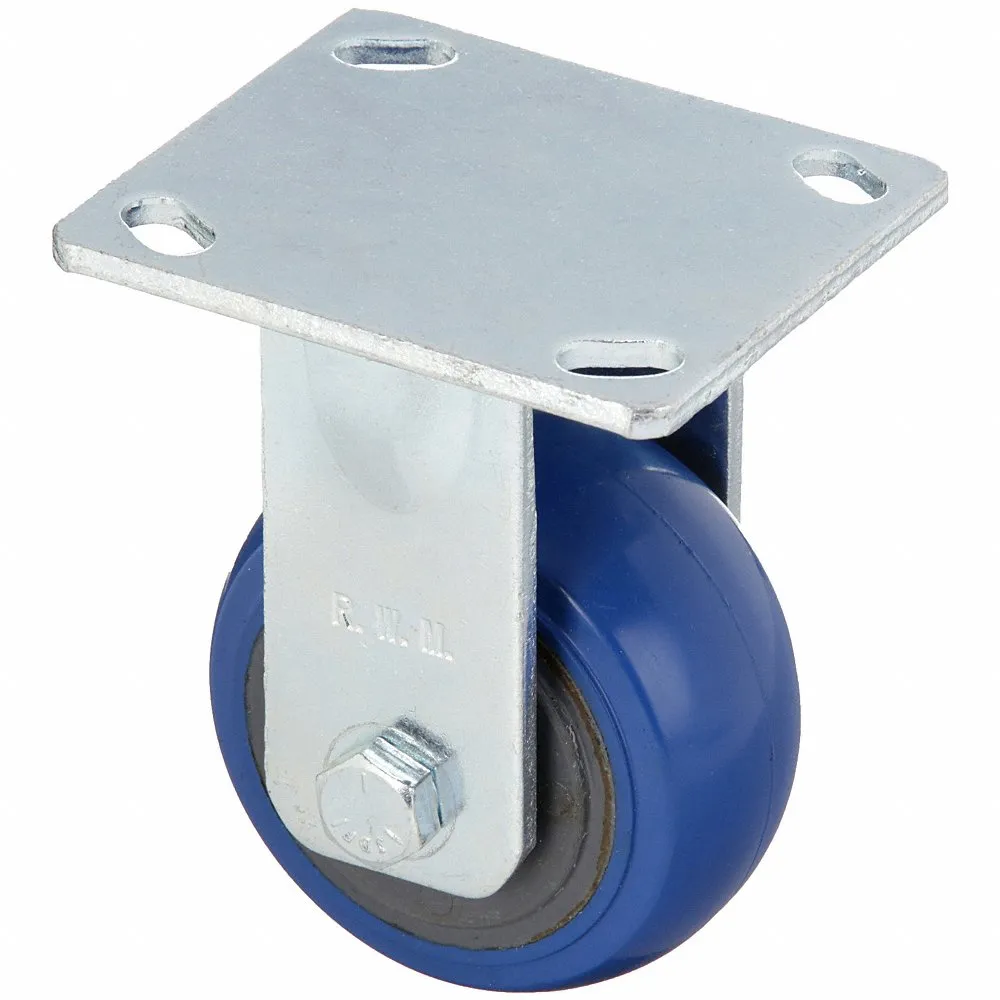

RWM 48-SWB-0420-R Plate Caster, Rigid, Kingpin, Rigid Caster, 4 Inch Wheel Diameter
€42.78 /unit
Request a Quote
Payment
Payment
| Item | Plate Caster |
| Core Color | Silver |
| Frame Color | Silver |
| Frame Finish | Zinc Plated |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 400 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 5 5/8" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Tread | Elastomeric Rubber |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Application | Metalworking |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid |
| Features | Maintenance Free Caster |
| For Axle Dia. | 1/2" |
| Includes | Wheel |
| Includes Mounting Fasteners | No |
| Includes Thread Guards | No |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" ( B ) |
| Mounting Plate Thickness | 1/4" |
| Replacement Wheel | SWB-0420-08 |
| Swivel Bearing Seal Type | Sealed |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Precision Ball |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Nylon |
| Wheel Dia. | 4" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 70 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
| With Toe Plate | No |
| Ship weight (kg) | 1.62 |
| Country of Origin | USA |
| Model | Load Rating | Tread | Price | |
|---|---|---|---|---|
| 48-SWB-0820-R | 700 lb | Elastomeric Rubber | €81.26 | RFQ
|
| 48-SWB-0620-R | 600 lb | Elastomeric Rubber | €64.96 | RFQ
|
| 48-UAB-0621-R-ESD | 800 lb | Urethane | €84.63 | RFQ
|
| 48-GTB-0620-R | 1500 lb | Elastomeric Rubber | €96.60 | RFQ
|
| 48-GTB-0520-R | 1200 lb | Elastomeric Rubber | €79.53 | RFQ
|
