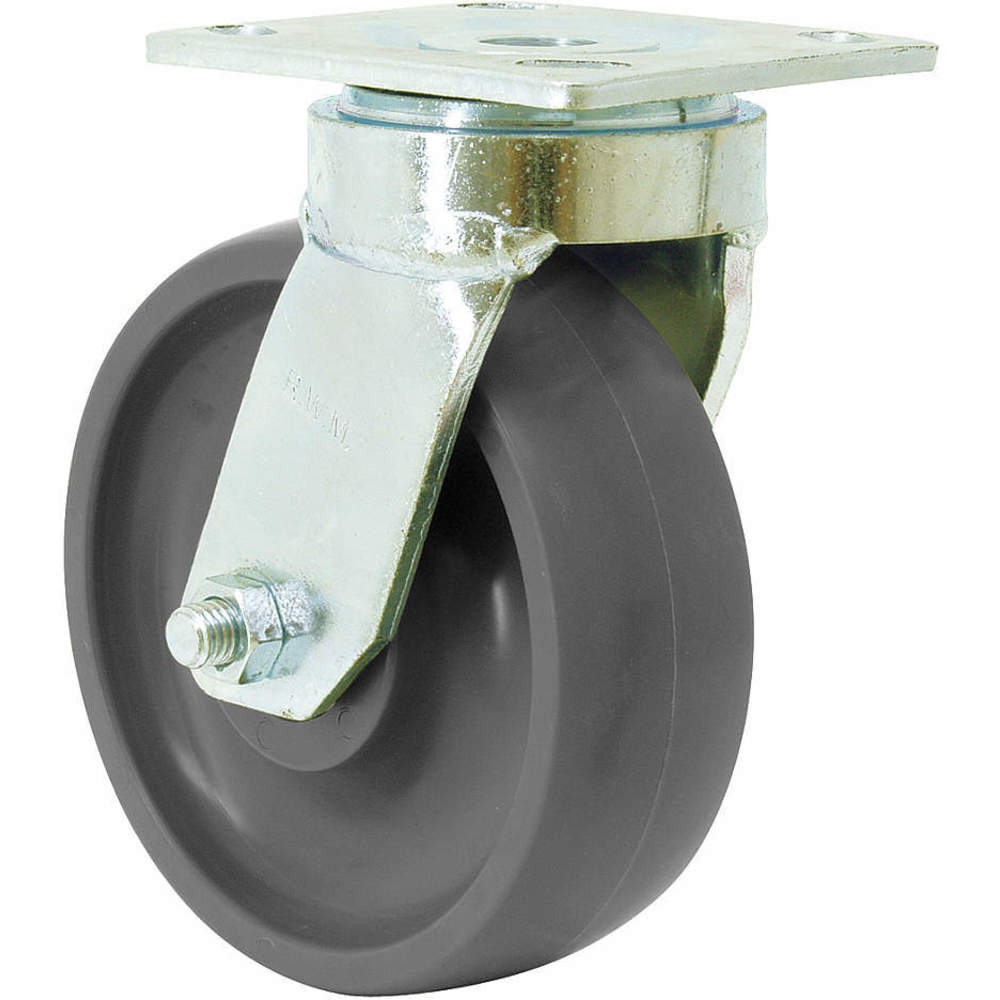

| Item | Swivel Plate Caster |
| Core Color | Gray |
| Durometer | 75 Shore D |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Inside Bolt Hole Spacing | 2 5/8" x 3" |
| Load Rating | 1200 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Outside Bolt Hole Spacing | 3 5/8" x 3" |
| Overall Height | 6 1/2" |
| Plate Caster Core Material | Nylon |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Nylon |
| Plate Size | 4" x 4 1/2" x 1/4" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Sealed |
| Wheel Bearing Type | Ball |
| Wheel Bearings | Ball |
| Wheel Color | Gray |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Application | Dollies, Waste Disposal Trucks, Floor Trucks, And Shop Carts |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Features | Maintenance Free |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Replacement Wheel | P-N-050X020/050K-001 |
| Standards | ICWM |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Core Material | Nylon |
| Wheel Dia. | 5" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 75 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
| Ship weight (kg) | 2.36 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 20.32 |
| HS code | 8716900000 |
