| 20 | $77.70 |
| 60 | $64.75 |

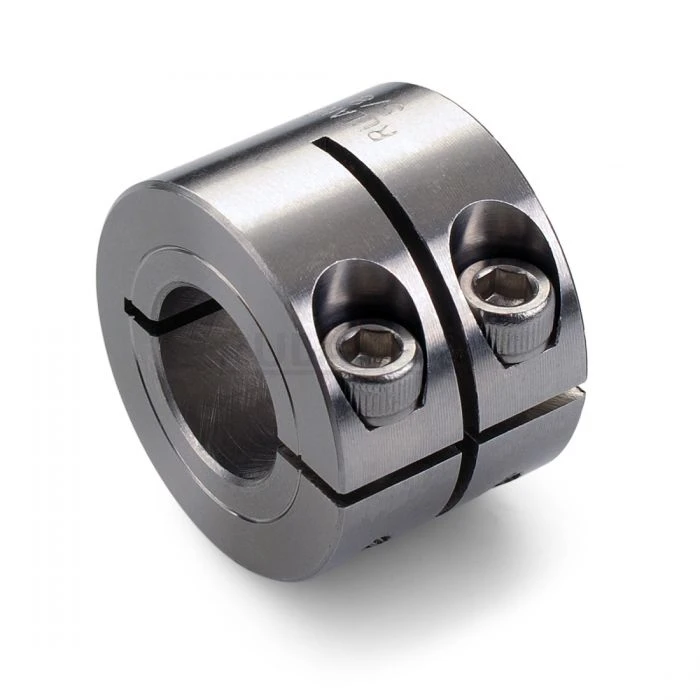

| Bore (b1) | 0.6250 in |
| Bore Tolerance | +0.0020 in / +0.0005 in |
| Clearance Diameter (c) Max | 1.500 in |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | #10-32 |
| Hex Wrench Size | 5/32 in |
| Length (l) | 15/16 in |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Moment Of Inertia | 0.0686 lb-in |
| Number Of Screws | 2 ea |
| Outer Diameter (od) | 1 5/16 in |
| Recommended Hex Key | Inch Hex Keys |
| Recommended Shaft Tolerance | +0.0000 in / -0.0005 in |
| Screw Finish | Bright |
| Screw Location (r) | 0.484 in |
| Screw Material | 18-8 300 Series Stainless Steel |
| Seating Torque | 45 lb-in |
| Small Bore (b2) | 0.5000 in |
| Temperature | -40°F to 350°F (-40°C to 176°C) |
| Torque Wrench | TW:BT-1R-1/4-45.0 |
| Width (w) | 15/16 in |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 3.34 |
| Ship length (cm) | 2.38 |
| Ship width (cm) | 2.38 |
| Country of Origin | US |
